SKTQABE010

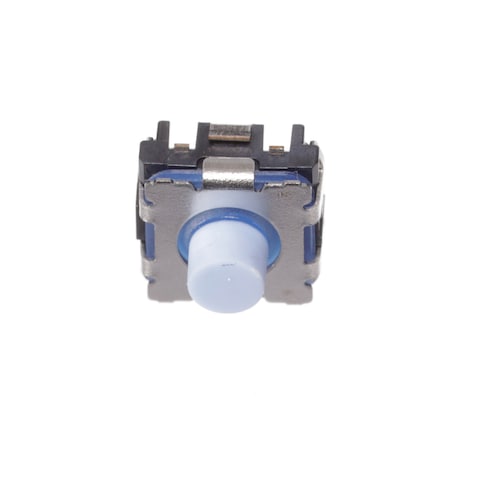

Name: Alps Alpine SKTQABE010
Brand: Alps Alpine
SKU: 688-SKTQABE010
Price: 0.9 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

688-SKTQABE010

Mfr. No:

SKTQABE010

Mfr.:

Alps Alpine

Description:

Tactile Switches 5.3mm x 5.4mm SMT Compact Mid-Stroke

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Alps Alpine SKTQABE010

In Stock: 406

Stock:: 406 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 37 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,907 €	0,91 €
	0,793 €	7,93 €
	0,739 €	18,48 €
	0,659 €	65,90 €
	0,636 €	159,00 €
	0,576 €	288,00 €
	0,545 €	545,00 €
Full Reel (Order in multiples of 2200)
	0,42 €	924,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Alps Alpine
Product Category:	Tactile Switches
RoHS:
Illuminated:	Non-Illuminated
Mounting Style:	SMD/SMT
Mounting Direction:	Straight
Stem Height:	1.7 mm
Actuator:	Round
Switch Function:	OFF - (ON)
Operating Force:	3 N
Current Rating:	50 mA
Voltage Rating DC:	16 VDC
Ground Terminal:	No
Contact Form:	SPST
Termination Style:	Solder Pad
Color:	Blue
Length:	5.3 mm
Width:	5.4 mm
Height:	4.25 mm
Series:	SKTQ
Life:	200000 Cycle
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Alps Alpine
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	JP
Product Type:	Tactile Switches
Factory Pack Quantity:	2200
Subcategory:	Switches
Tradename:	TACT Switch
Unit Weight:	140 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

This functionality requires JavaScript to be enabled.

CNHTS:: 8536500090
USHTS:: 8536509031
ECCN:: EAR99

SKTQ TACT Switches

Alps Alpine SKTQ TACT Switches™ feature a snap-in mount, in a straight direction, and last as many as 200,000 cycles. These compact on/off switches provide an unmistakable click and require a high 5N operating force, which prevents accidental operations. The switches are non-illuminated and offer a compact, middle-stroke form factor, using the same 5.3mm x 5.4mm dimensions as the SKSU series. The reliable operating feel and quiet operation of Alps Alpine SKTQ TACT Switches make them ideal for steering wheel switches and center console panels.
