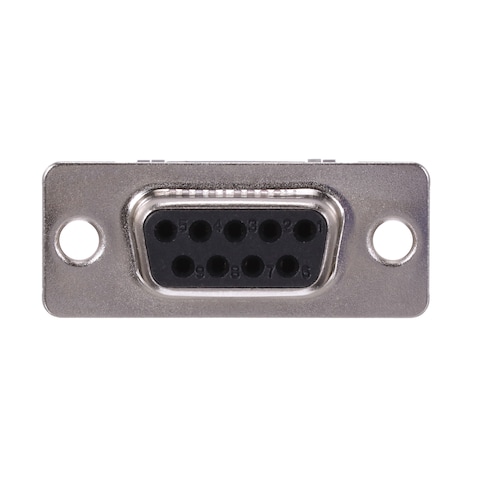

302A10089X

Name: Amphenol 302A10089X
Brand: Amphenol CONEC
SKU: 706-302A10089X
Price: 2.51 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

706-302A10089X

Mfr. No:

302A10089X

Mfr.:

Amphenol CONEC

Description:

D-Sub Standard Connectors 9 POS F IDC D-SUB METAL SHELL

Datasheet:

302A10089X Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 309

Stock:: 309 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 15 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 309 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,51 €	2,51 €
	2,14 €	21,40 €
	1,95 €	48,75 €
	1,74 €	156,60 €
	1,69 €	456,30 €
	1,61 €	869,40 €
	1,53 €	1.652,40 €
	1,45 €	3.654,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	D-Sub Standard Connectors
RoHS:
Number of Positions:	9 Position
Contact Gender:	Socket (Female)
Termination Style:	IDC
Mounting Style:	Through Hole
Mounting Angle:	Straight
Number of Rows:	2 Row
Gender:	Female
Contact Plating:	Gold
Type:	Receptacle
Shell Size:	1 (E)
Shell Material:	Steel
Shell Plating:	Tin
Filtered:	Unfiltered
Boardlocks:	Without Boardlocks
Brand:	Amphenol CONEC
Contact Material:	Copper Alloy
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	TW
Current Rating:	7.5 A
Insulation Material:	Polyester
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Product Type:	D-Sub Connectors - Standard Density
Factory Pack Quantity:	90
Subcategory:	D-Sub Connectors
Voltage Rating:	125 V
Unit Weight:	6,760 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

302A10089X Datasheet (PDF)

Models

302A10089X (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99
