901-368-12

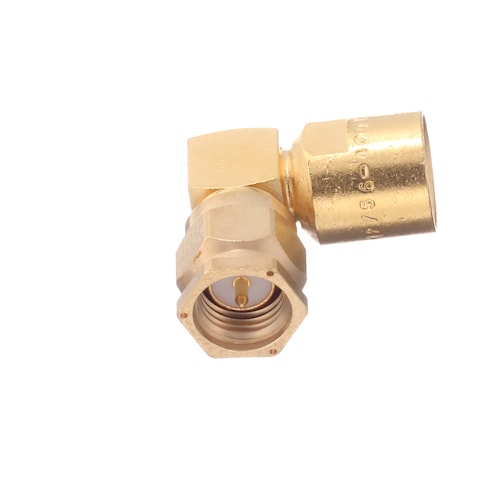

Name: Amphenol 901-368-12
Brand: Amphenol RF
SKU: 523-901-368-12
Price: 83.17 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

523-901-368-12

Mfr. No:

901-368-12

Mfr.:

Amphenol RF

Description:

RF Connectors / Coaxial Connectors M39012/56-4007

Datasheet:

901-368-12 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol RF 901-368-12

In Stock: 97

Stock:: 97

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 100
Factory Lead Time:: 14

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	83,17 €	83,17 €
	77,55 €	775,50 €
	73,63 €	1.840,75 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	RF Connectors / Coaxial Connectors
RoHS:
REACH - SVHC:
Product:	Connectors
RF Series:	SMA
Gender:	Plug (Pin)
Impedance:	50 Ohms
Maximum Frequency:	180 MHz
Termination Style:	Solder
Orientation:	Right Angle
Polarity:	Standard
Mounting Style:	Cable Mount / Free Hanging
Cable Type:	RG-174, 188, 316
Packaging:	Bulk
Body Finish:	Gold
Body Material:	Brass
Body Style:	Right Angle
Brand:	Amphenol RF
Contact Material:	Beryllium Copper
Contact Plating:	Gold
Contact Termination:	Crimp
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Coupling Mechanism:	Threaded
Insulation Resistance:	5 GOhms
Isolation:	Non-Isolated
Mating Cycles:	100
Maximum Operating Temperature:	+ 165 C
Minimum Operating Temperature:	- 65 C
Product Type:	RF Connectors / Coaxial Connectors
Series:	SMA
Factory Pack Quantity:	1
Subcategory:	RF Interconnects
Voltage Rating:	500 V
Part # Aliases:	M39012/56-4007
Unit Weight:	9,280 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8536691000
CNHTS:: 8536690000
CAHTS:: 8536690010
USHTS:: 8536694010
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Coaxial PCB Connectors

Amphenol SV Microwave Coaxial PCB Connectors meet or exceed industry requirements for high-performance, efficient, compact designs. Configurations include single-port and multiport 2.92mm, 2.4mm, SMA, SMP, SMPM, and SMPS edge launch, board mount, and thru-hole connectors. SMPx PCB connectors are designed for high-density applications and allow axial and radial misalignment to compensate for tolerance stack up. Pre-tinned versions and custom PCB footprint designs that optimize connector to PCB transitions are also available.
