RTS1BS10N4PHEC03

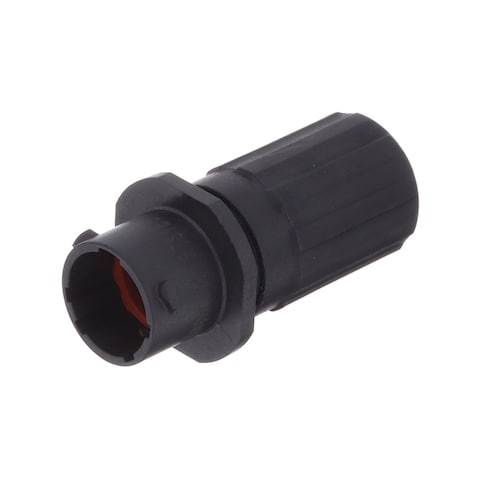

Name: Amphenol RTS1BS10N4PHEC03
Brand: Amphenol SINE Systems
SKU: 654-RTS1BS10N4PHEC03
Price: 10.33 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-RTS1BS10N4PHEC03

Mfr. No:

RTS1BS10N4PHEC03

Mfr.:

Amphenol SINE Systems

Description:

Standard Circular Connector ECO MATE-AQUARIUS CONNECTOR

Datasheet:

RTS1BS10N4PHEC03 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems RTS1BS10N4PHEC03

In Stock: 181

Stock:: 181

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 190
Factory Lead Time:: 17

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	10,33 €	10,33 €
	8,77 €	87,70 €
	8,22 €	205,50 €
	7,83 €	391,50 €
	6,57 €	657,00 €
	6,50 €	1.625,00 €
	6,41 €	3.205,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Standard Circular Connector
RoHS:
Product:	Connectors
Number of Positions:	4 Position
Contact Gender:	Pin (Male)
Shell Size:	10
Mounting Style:	Cable
Termination Style:	Crimp
Shell Material:	Thermoplastic (TP)
Accessory Type:	Inline Receptacle w Backshell
Diameter:	21 mm
IP Rating:	IP67, IP69k
Packaging:	Bulk
Brand:	Amphenol SINE Systems
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	13 A
Flammability Rating:	UL 94 V-0
Housing Gender:	Male
Housing Material:	Thermoplastic
Length:	33.1 mm
Mating Style:	Bayonet
Mounting Angle:	Straight
Product Type:	Standard Circular Connector
Shell Style:	Receptacle
Factory Pack Quantity:	50
Subcategory:	Circular Connectors
Voltage Rating:	500 V
Wire Gauge:	24 AWG to 14 AWG

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

RTS1BS10N4PHEC03 Datasheet (PDF)

Models

3D Model

Product Catalogs

Technical Resources

Assembly Instructions (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
CNHTS:: 8547200000
CAHTS:: 8536690030
USHTS:: 8538908180
JPHTS:: 853890000
KRHTS:: 8536699000
BRHTS:: 85366990
ECCN:: EAR99

eco|mate® Aquarius Waterproof Connectors

Amphenol Sine Systems eco|mate® Aquarius Waterproof Connectors provide an IP68/69K waterproof rating when in a mated condition. Amphenol Sine Aquarius corrosion-resistant connectors feature a plastic shell and low-profile housing for indoor/outdoor applications. These waterproof connectors are designed based on MIL-DTL-26482 and provide quick, reliable mating. The series offers 8, 10, 12, 14, 16, and 18 shell sizes, along with 27 insert arrangements. Additional features include optional inline, jam-nut, square-flanged, PCB, and end-cap configurations.
