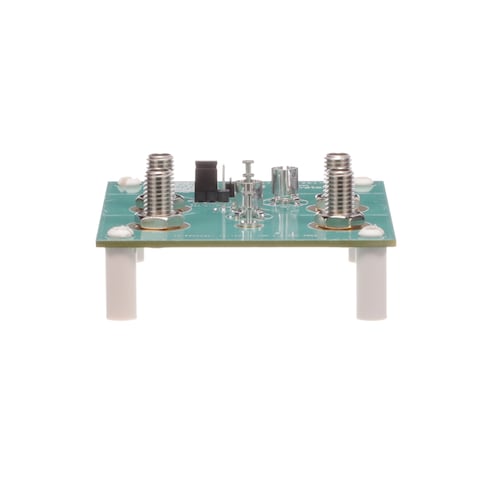

MAXM17225EVK#EMGA

Name: Analog Devices Inc. MAXM17225EVK#EMGA
Brand: Analog Devices / Maxim Integrated
SKU: 700-MAXM17225EVKEMGA
Price: 77.34 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

700-MAXM17225EVKEMGA

Mfr. No:

MAXM17225EVK#EMGA

Mfr.:

Analog Devices / Maxim Integrated

Description:

Power Management IC Development Tools Tiny, 400mV to 5.5V Input, nanoPower Syn

Datasheet:

MAXM17225EVK#EMGA Datasheet (PDF)

More Information

Learn more about Analog Devices / Maxim Integrated MAXM17225EVK#EMGA

In Stock: 5

Stock:: 5 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	77,34 €	77,34 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Analog Devices Inc.
Product Category:	Power Management IC Development Tools
RoHS:
Product:	Evaluation Kits
Type:	Voltage Regulator - Switching Regulator
Input Voltage:	400 mV to 5.5 V
Output Voltage:	1.8 V to 5 V
Tool Is For Evaluation Of:	MAXM17225
Brand:	Analog Devices / Maxim Integrated
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	PH
Packaging:	Bulk
Product Type:	Power Management IC Development Tools
Factory Pack Quantity:	1
Subcategory:	Development Tools

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

MAXM17225EVK#EMGA Datasheet (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 9030337000
CAHTS:: 8473302000
USHTS:: 8473301180
MXHTS:: 8473300401
ECCN:: EAR99

MAX17225 Evaluation Kit

Analog Devices MAX17225 Evaluation Kit is designed to quickly demonstrate the functionality and versatility of the MAX17220 - MAX17225 ICs. The MAX17220 - MAX17225 DC-DC Converters are ultra-low quiescent current boost (step-up) DC-DC converters with a 225mA/0.5A/1A peak inductor current limit and True Shutdown™. True Shutdown disconnects the output from the input with no forward or reverse current. The output voltage is selectable using a single standard 1% resistor. The MAX17225 Evaluation Kit features two independent circuits to evaluate two different IC packages of the MAX17220–MAX17225. The dual circuits operate over an input range of 400mV to 5.5V, depending on load, with a 0.88V typical startup and a 3kΩ load. Each circuit delivers resistor-configurable output voltages from 1.8V to 5V in 100mV/step.
