12059473

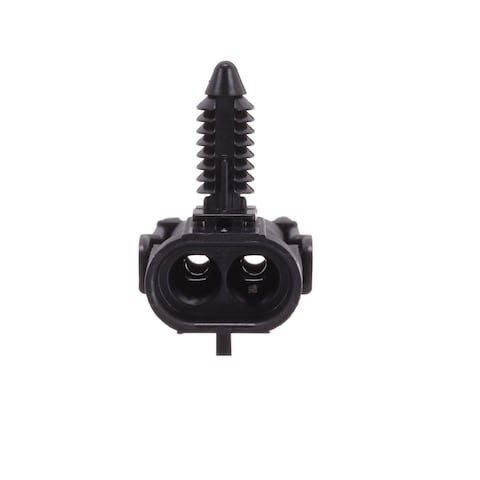

Name: Aptiv 12059473
Brand: Aptiv (formerly Delphi)
SKU: 829-12059473
Price: 2.48 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

829-12059473

Mfr. No:

12059473

Mfr.:

Aptiv (formerly Delphi)

Description:

Automotive Connectors CON W/P SHD 2W ML ASM

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Aptiv (formerly Delphi) 12059473

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 17 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,48 €	2,48 €
	1,47 €	36,75 €
	1,41 €	70,50 €
	1,36 €	136,00 €
	1,20 €	720,00 €
	1,14 €	1.368,00 €
	0,824 €	2.472,00 €
	0,807 €	4.357,80 €
	0,797 €	8.129,40 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Aptiv
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	2 Position
Gender:	Plug (Male)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Color:	Black
Series:	Weather Pack
Packaging:	Bulk
Brand:	Aptiv (formerly Delphi)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	20 A
Dimensions:	46.9 mm L x 23.9 mm W x 41.77 mm H
Family:	Weather-Pack
Material:	Nylon
Mating Gender:	Female
Mating Part Number:	12015792, 12015782
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Number of Rows:	1 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	600
Subcategory:	Automotive Connectors
Tradename:	Weather Pack
Type:	2-Way
Unit Weight:	9,140 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Drawing

This functionality requires JavaScript to be enabled.

TARIC:: 8547200000
CNHTS:: 8547200000
CAHTS:: 8538903900
USHTS:: 8538908180
JPHTS:: 853890000
BRHTS:: 85389090
ECCN:: EAR99

Weather Pack Connection Systems

Aptiv Weather Pack Connection Systems is a series of environmentally sealed electrical connectors designed to withstand exposure to extreme temperatures and moisture. The Aptiv Weather Pack Connection Systems feature tin-plated terminals with special core wings that allow crimp-only connections, eliminating the need for solder. The connector and cavity seals are triple-ribbed and made of self-lubricating silicone. Cavity plugs are available to fill unused cavities. Weather Pack terminals utilize a flex-pin and lap-lock design to alleviate the problem of stress relaxation. They also have dual-locking tangs that lock into the connector cavity and help prevent backing out.
