12157968

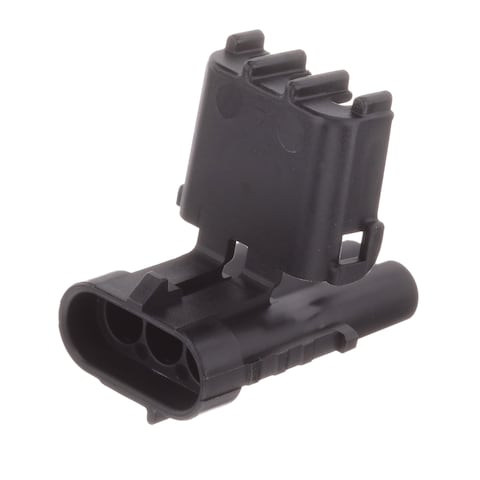

Name: Aptiv 12157968
Brand: Aptiv (formerly Delphi)
SKU: 829-12157968
Price: 2.54 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

829-12157968

Mfr. No:

12157968

Mfr.:

Aptiv (formerly Delphi)

Description:

Automotive Connectors 3 Way M W/P Sealed Connector

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Aptiv (formerly Delphi) 12157968

In Stock: 3.970

Stock:: 3.970 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 24 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,54 €	2,54 €
	1,50 €	37,50 €
	1,44 €	72,00 €
	1,38 €	138,00 €
	1,24 €	620,00 €
	1,21 €	1.210,00 €
	1,07 €	2.675,00 €
	0,842 €	4.210,00 €
	0,826 €	8.260,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Aptiv
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	3 Position
Gender:	Pin (Male)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Color:	Black
Series:	Sealed
Packaging:	Bulk
Brand:	Aptiv (formerly Delphi)
Contact Gender:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	ES
Current Rating:	20 A
Dimensions:	42.7 mm L x 30.8 mm W x 28.4 mm H
Family:	Weather-Pack
Height:	28.4 mm
Housing Material:	Nylon
Length:	42.7 mm
Locking Mechanism:	Cavity Lock
Material:	Nylon
Mating Gender:	Female
Mating Part Number:	10737788
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Number of Rows:	1 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	5000
Subcategory:	Automotive Connectors
Tradename:	Weather Pack
Type:	3-Way
Width:	31.1 mm
Unit Weight:	24,159 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Drawing

This functionality requires JavaScript to be enabled.

TARIC:: 8547200090
CNHTS:: 8547200000
CAHTS:: 8538903900
USHTS:: 8538908180
JPHTS:: 853890000
BRHTS:: 85389090
ECCN:: EAR99

Weather Pack Connection Systems

Aptiv Weather Pack Connection Systems is a series of environmentally sealed electrical connectors designed to withstand exposure to extreme temperatures and moisture. The Aptiv Weather Pack Connection Systems feature tin-plated terminals with special core wings that allow crimp-only connections, eliminating the need for solder. The connector and cavity seals are triple-ribbed and made of self-lubricating silicone. Cavity plugs are available to fill unused cavities. Weather Pack terminals utilize a flex-pin and lap-lock design to alleviate the problem of stress relaxation. They also have dual-locking tangs that lock into the connector cavity and help prevent backing out.
