HX15-9-LR-GIL-102

Name: Digi International HX15-9-LR-GIL-102
Brand: Digi
SKU: 888-HX15-9-LR-GIL102
Price: 408.07 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

888-HX15-9-LR-GIL102

Mfr. No:

HX15-9-LR-GIL-102

Mfr.:

Digi

Description:

Gateways HX15 Indoor Gateway, 8-channel LoRaWAN, 902-928MHz, 10/100 Ethernet, LTE, SIM, 1.2dBi 915Mhz Antenna, 2x LTE Antenna, USB-C

Lifecycle:

New Product:

New from this manufacturer.

Datasheet:

HX15-9-LR-GIL-102 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Digi HX15-9-LR-GIL-102

Delivery Restriction:

Product available only to OEM/EMS and design business customers. Product is not shipped to consumers in the EU or the UK. This product will require additional documentation to export from the United States.

In Stock: 54

Stock:: 54

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 5
Factory Lead Time:: 15

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	408,07 €	408,07 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Digi International
Product Category:	Gateways
Delivery Restriction:	Product available only to OEM/EMS and design business customers. Product is not shipped to consumers in the EU or the UK. This product will require additional documentation to export from the United States.
RoHS:
Product:	LoRaWAN Gateways
Frequency:	900 MHz
Data Rate:	10 Mb/s, 100 Mb/s
Number of Ports:	8 Port
Interface Type:	USB-C
Supply Voltage - Max:	5 VDC
Minimum Operating Temperature:	- 25 C
Maximum Operating Temperature:	+ 55 C
Brand:	Digi
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	ES
Dimensions:	14.61 mm x 3.17 mm x 14.61 mm
Operating Supply Voltage:	5 VDC
Product Type:	Gateways
Protocol - ANT, Thread, Zigbee - 802.15.4:	ANT
Protocol - Cellular, NBIoT, LTE:	Cellular, LTE
RAM:	512 MB
Series:	HX15
Factory Pack Quantity:	1
Subcategory:	Ethernet & Communication Modules

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

HX15-9-LR-GIL-102 Datasheet (PDF)

TARIC:: 8517620000
USHTS:: 8517620090
JPHTS:: 851762090
ECCN:: 5A991.b.1

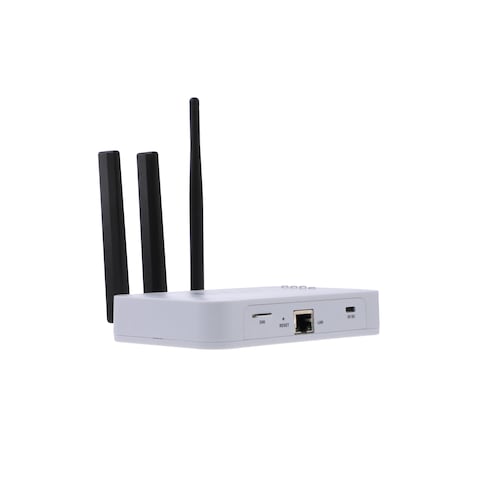

HX15 LoRaWAN™ Gateways

DIGI HX15 LoRaWAN™ Gateways are designed for indoor IoT coverage, supporting various LoRaWAN channel plans. The DIGI HX15 gateways feature eight receive channels for extensive coverage, handling up to 1.5 million messages daily. It offers easy wall or table mounting, which is ideal for smaller campus or building setups. Simplified deployment is ensured with auto-connect and auto-configure features via the DIGI X-ON cloud IoT platform. The gateway utilizes independent Ethernet and power connections, with optional LTE cellular connectivity enhancing integration with enterprise cloud services.
