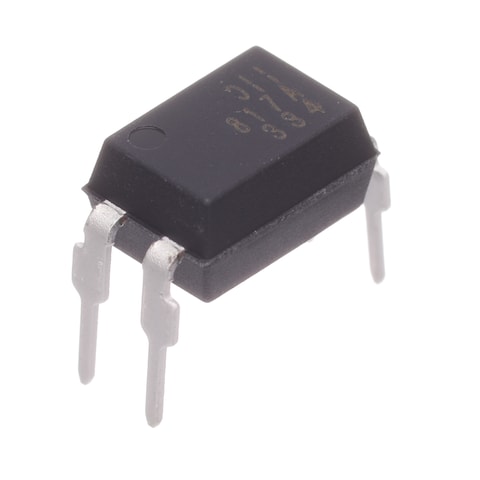

DPC817D-A-TU

Name: Diodes Incorporated DPC817D-A-TU
Brand: Diodes Incorporated
SKU: 621-DPC817D-A-TU
Price: 0.19 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

621-DPC817D-A-TU

Mfr. No:

DPC817D-A-TU

Mfr.:

Diodes Incorporated

Description:

Transistor Output Optocouplers Photo Coupler DIP-4 TUBE 100PCS

Datasheet:

DPC817D-A-TU Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Diodes Incorporated DPC817D-A-TU

In Stock: 6.309

Stock:: 6.309 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,198 €	0,20 €
	0,131 €	1,31 €
	0,08 €	8,00 €
	0,071 €	35,50 €
	0,055 €	55,00 €
	0,054 €	135,00 €
	0,049 €	245,00 €
	0,042 €	420,00 €
	0,038 €	950,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Diodes Incorporated
Product Category:	Transistor Output Optocouplers
RoHS:
Mounting Style:	Through Hole
Package/Case:	DIP-4
Number of Channels:	1 Channel
Isolation Voltage:	5000 Vrms
Output Type:	Phototransistor
Current Transfer Ratio - Min:	80 %
Current Transfer Ratio - Max:	160 %
If - Forward Current:	5 mA
Vf - Forward Voltage:	1.25 V
Maximum Collector Emitter Voltage:	35 V
Maximum Collector Current:	30 mA
Maximum Collector Emitter Saturation Voltage:	200 mV
Rise Time:	18 us
Fall Time:	18 us
Vr - Reverse Voltage:	6 V
Pd - Power Dissipation:	200 mW
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 110 C
Packaging:	Tube
Brand:	Diodes Incorporated
Configuration:	1 Channel
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Transfer Ratio:	50 % to 600 %
Product Type:	Transistor Output Optocouplers
Factory Pack Quantity:	100
Subcategory:	Optocouplers

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

DPC817D-A-TU Datasheet (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8541490000
CAHTS:: 8541400091
USHTS:: 8541498000
JPHTS:: 854149000
MXHTS:: 8541499900
BRHTS:: 85414900
ECCN:: EAR99

DPC817 Transistor Output Optocouplers

Diodes Incorporated DPC817 Transistor Output Optocouplers feature a high input-output isolation voltage of 5,000V_RMS and are available in multiple packages. The devices have a 35V collector-emitter breakdown output voltage and a 50% current transfer ratio. The Diodes Inc. DPC817 Transistor Output Optocouplers are specified for an operating temperature range of -55°C to +110°C and are housed in a DIP-4, MDIP-4, SL-4, or SLM-4 package.
