DF13EA-30DP-1.25V(22)

Name: Hirose Electric DF13EA-30DP-1.25V(22)
Brand: Hirose Connector
SKU: 798-DF13EA30DP125V22
Price: 1.36 EUR
Availability: InStock

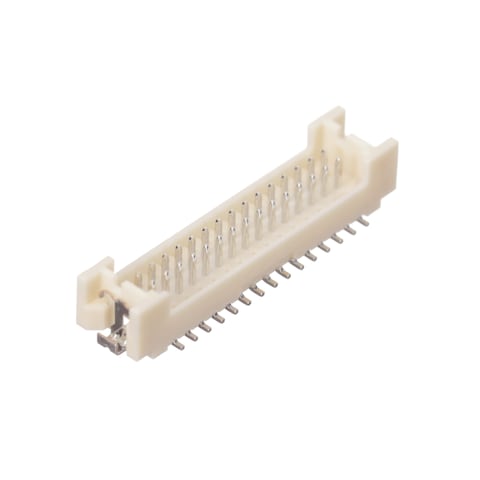

Images are for reference only
See Product Specifications

Mouser No:

798-DF13EA30DP125V22

Mfr. No:

DF13EA-30DP-1.25V(22)

Mfr.:

Hirose Connector

Description:

Headers & Wire Housings CONN HEADER SMD 30POS 1.25MM

Datasheet:

DF13EA-30DP-1.25V(22) Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 1.312

Stock:: 1.312 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 5 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,36 €	1,36 €
	1,19 €	11,90 €
	1,14 €	28,50 €
	1,07 €	107,00 €
	0,963 €	240,75 €
	0,886 €	443,00 €
Full Reel (Order in multiples of 1000)
	0,789 €	789,00 €
	0,739 €	1.478,00 €
	0,713 €	3.565,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Hirose Electric
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Pin Header
Number of Positions:	30 Position
Pitch:	1.25 mm (0.049 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Crimp
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	DF13
Minimum Operating Temperature:	- 35 C
Maximum Operating Temperature:	+ 85 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Hirose Connector
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	JP
Current Rating:	1 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Beige
Housing Gender:	Male
Housing Material:	Polyamide (PA)
Insulation Resistance:	500 MOhms
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1000
Subcategory:	Headers & Wire Housings
Voltage Rating:	150 V
Part # Aliases:	536-0572-0-22

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

DF13EA-30DP-1.25V(22) Datasheet

Product Catalogs

Catalog

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

DF13 1.25mm Pitch Miniature Crimping Connectors

Hirose Electric DF13 1.25mm Pitch Miniature Crimping Connectors offer SignalBee™ features for automatic mounting processes. These multi-contact, miniature connectors come with a header that has a scoop-proof box structure and eliminates misinsertion. The surface-mount (SMT) header is equipped with a metal fitting to prevent solder peeling. Applications for Hirose Electric DF13 1.25mm Pitch Miniature Crimping Connectors include notebook PCs, mobile terminals, miniature business equipment, and consumer equipment.
