DF63A-5EP-3.96C

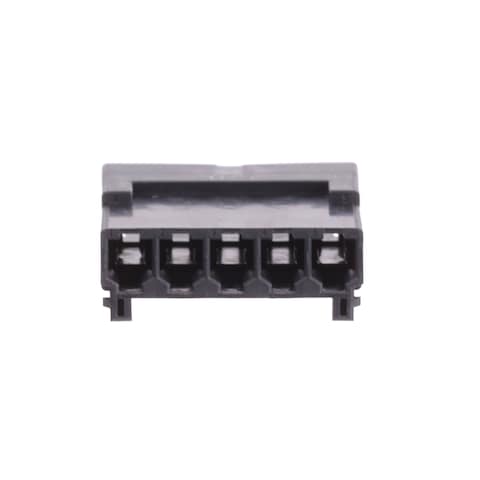

Name: Hirose Electric DF63A-5EP-3.96C
Brand: Hirose Connector
SKU: 798-DF63A-5EP-3.96C
Price: 0.58 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

798-DF63A-5EP-3.96C

Mfr. No:

DF63A-5EP-3.96C

Mfr.:

Hirose Connector

Description:

Headers & Wire Housings

Datasheet:

DF63A-5EP-3.96C Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 1.381

Stock:: 1.381 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 6 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,585 €	0,59 €
	0,509 €	5,09 €
	0,465 €	11,63 €
	0,421 €	42,10 €
	0,325 €	812,50 €
	0,287 €	1.435,00 €
	0,281 €	2.810,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Hirose Electric
Product Category:	Headers & Wire Housings
RoHS:
Product:	Connectors
Type:	Wire to Board
Number of Positions:	5 Position
Pitch:	3.96 mm (0.156 in)
Number of Rows:	1 Row
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Series:	DF63
Wire Gauge:	16 AWG
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Bulk
Brand:	Hirose Connector
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Current Rating:	10 A
Flammability Rating:	UL 94 V-0
Housing Gender:	Plug
Insulation Resistance:	1 GOhms
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	100
Subcategory:	Headers & Wire Housings
Voltage Rating:	63 V
Part # Aliases:	680-0557-0-00

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

DF63A-5EP-3.96C Datasheet

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
CNHTS:: 8547200000
CAHTS:: 8536690090
USHTS:: 8536698000
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

LED Lighting Solutions

Hirose Electric LED Lighting Solutions are engineered for power efficiency, compact spaces, and environmental durability. Hirose connectors provide reliable performance across advanced LED lighting applications. From ultra-low-profile wire-to-board solutions to FPC/FFC connectors with high retention and snap-lock features, these products streamline assembly and reduce connection errors. Options include IP-rated waterproof modules and heat-resistant designs that ensure long-term operation in both indoor and outdoor systems. Applications suitable for these products include ceiling lights, strip lights, circular modules, and exterior fixtures.

EnerBee™ Power Cable Connectors

Hirose Electric EnerBee™ Power Cable Connectors feature compact size and high-end performance and are ideal for use with high-current and high-tension devices. The connectors have a positive lock mechanism for use in the demanding areas of industrial power supply and power sources. They are designed for LED lighting, office equipment, medical devices, robotics, home electronics, servers, battery storage, automotive, and industrial power supply/power sources.
