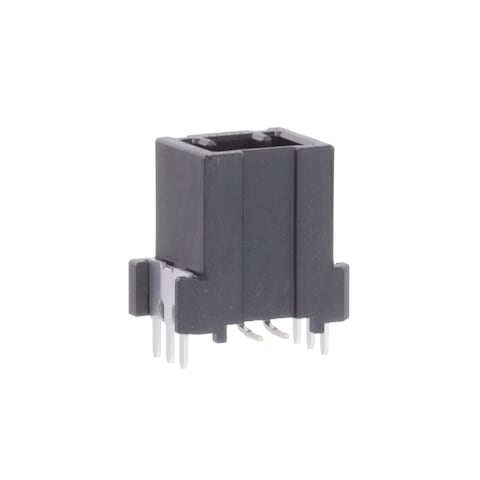

ZE05-2P-2V

Name: Hirose Electric ZE05-2P-2V
Brand: Hirose Connector
SKU: 798-ZE05-2P-2V
Price: 1.51 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

798-ZE05-2P-2V

Mfr. No:

ZE05-2P-2V

Mfr.:

Hirose Connector

Description:

Automotive Connectors

Datasheet:

ZE05-2P-2V Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 219

Stock:: 219 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,51 €	1,51 €
	1,31 €	13,10 €
	1,28 €	32,00 €
Full Reel (Order in multiples of 250)
	1,05 €	262,50 €
	0,972 €	486,00 €
	0,858 €	858,00 €
	0,805 €	2.012,50 €
	0,766 €	3.830,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Hirose Electric
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	2 Position
Pitch:	2 mm (0.079 in)
Gender:	Receptacle (Female)
Mounting Style:	SMD/SMT
Termination Style:	Solder Pin
Contact Plating:	Tin
Color:	Black
Series:	ZE05
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Hirose Connector
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	JP
Current Rating:	2 A
Flammability Rating:	UL 94 V-0
Housing Material:	Polyamide (PA)
Insulation:	Insulated
Insulation Resistance:	100 MOhms
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Number of Rows:	1 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	250
Subcategory:	Automotive Connectors
Voltage Rating:	60 VAC/DC
Part # Aliases:	752-2300-0-00

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ZE05-2P-2V Datasheet

Product Catalogs

ZE05 Series Catalog

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Automotive Solutions

Hirose Electric offers specialized connectors designed for the demanding conditions of automotive applications, such as battery packs, EV chargers, inverters, LiDAR, and infotainment systems. These connectors feature high currents, high speeds, robust designs, durability in harsh environments, and automotive industry standardization. Hirose Electric connectors are built to withstand extreme vibration, moisture, and temperature, providing reliable performance.

ZE05 2mm Automotive Interface Connectors

Hirose Electric ZE05 2mm Automotive Interface Connectors provide +125°C high heat and vibration resistance. Hirose ZE05 Automotive Interface Connectors offer space savings with 0.5mm terminals and 2mm pitch. These automotive connectors feature a 5A or 2A rated current (24-position version). The retainer realizes 40N pull force strength.
