ZE05H-4P-2V

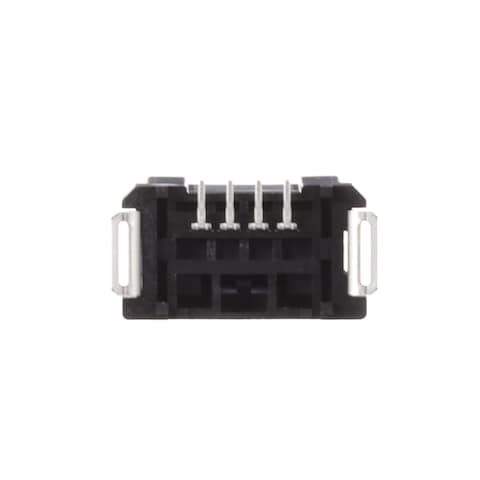

Name: Hirose Electric ZE05H-4P-2V
Brand: Hirose Connector
SKU: 798-ZE05H-4P-2V
Price: 1.93 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

798-ZE05H-4P-2V

Mfr. No:

ZE05H-4P-2V

Mfr.:

Hirose Connector

Description:

Automotive Connectors Straight Receptacle, SMT Solder Tabs, 4 Position

Datasheet:

ZE05H-4P-2V Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Hirose Connector ZE05H-4P-2V

In Stock: 2.101

Stock:: 2.101 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 6 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 250)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	1,93 €	1,93 €
	1,68 €	16,80 €
	1,61 €	40,25 €
	1,50 €	150,00 €
Full Reel (Order in multiples of 250)
	1,35 €	337,50 €
	1,24 €	620,00 €
	1,10 €	1.100,00 €
	1,01 €	2.525,00 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Hirose Electric
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Number of Positions:	4 Position
Pitch:	2 mm (0.079 in)
Gender:	Receptacle (Female)
Mounting Style:	SMD/SMT
Termination Style:	Solder
Contact Plating:	Tin
Series:	ZE05
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	Hirose Connector
Contact Gender:	Without Socket Contacts
Country of Assembly:	JP
Country of Diffusion:	Not Available
Country of Origin:	JP
Product Type:	Automotive Connectors
Factory Pack Quantity:	250
Subcategory:	Automotive Connectors
Part # Aliases:	752-2310-0-00

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ZE05H-4P-2V Datasheet (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
BRHTS:: 85366990
ECCN:: EAR99

Automotive Solutions

Hirose Electric offers specialized connectors designed for the demanding conditions of automotive applications, such as battery packs, EV chargers, inverters, LiDAR, and infotainment systems. These connectors feature high currents, high speeds, robust designs, durability in harsh environments, and automotive industry standardization. Hirose Electric connectors are built to withstand extreme vibration, moisture, and temperature, providing reliable performance.

ZE05 2mm Automotive Interface Connectors

Hirose Electric ZE05 2mm Automotive Interface Connectors provide +125°C high heat and vibration resistance. Hirose ZE05 Automotive Interface Connectors offer space savings with 0.5mm terminals and 2mm pitch. These automotive connectors feature a 5A or 2A rated current (24-position version). The retainer realizes 40N pull force strength.
