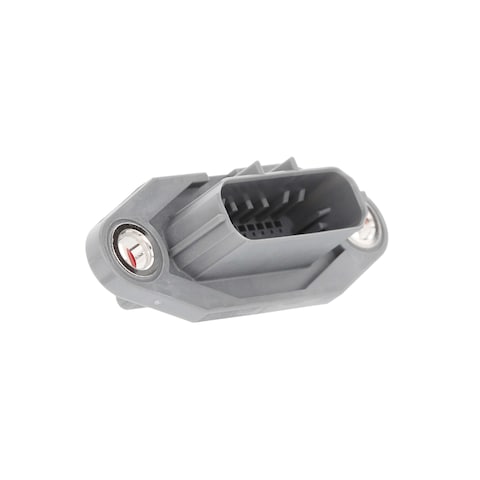

ZE064W-24DP-HU/R(B)

Name: Hirose Electric ZE064W-24DP-HU/R(B)
Brand: Hirose Connector
SKU: 798-ZE064W24DPHU/RB
Price: 5.9 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

798-ZE064W24DPHU/RB

Mfr. No:

ZE064W-24DP-HU/R(B)

Mfr.:

Hirose Connector

Description:

Automotive Connectors Male Housing / Retainer, B Key

Datasheet:

ZE064W-24DP-HU/R(B) Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Hirose Connector ZE064W-24DP-HU/R(B)

In Stock: 248

Stock:: 248 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,90 €	5,90 €
	5,34 €	53,40 €
	5,04 €	126,00 €
	4,92 €	246,00 €
	4,67 €	467,00 €
	4,17 €	1.042,50 €
	3,93 €	1.965,00 €
	3,60 €	3.600,00 €
	3,54 €	8.850,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Hirose Electric
Product Category:	Automotive Connectors
RoHS:
Product:	Housings
Number of Positions:	24 Position
Gender:	Plug (Male)
Mounting Style:	Panel Mount
Termination Style:	Crimp
Wire Gauge Min:	22 AWG
Wire Gauge Max:	20 AWG
Color:	Black
Series:	ZE064W
Packaging:	Tray
Brand:	Hirose Connector
Contact Gender:	Male
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	JP
Current Rating:	2 A
Flammability Rating:	UL 94 V-0
Housing Material:	Polyamide (PA)
Insulation Resistance:	100 MOhms
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Number of Rows:	2 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	250
Subcategory:	Automotive Connectors
Type:	Housing with Retainer
Voltage Rating:	60 VAC/DC
Part # Aliases:	753-2004-0-00

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

CNHTS:: 8547200000
USHTS:: 8538906000
ECCN:: EAR99

Automotive Solutions

Hirose Electric offers specialized connectors designed for the demanding conditions of automotive applications, such as battery packs, EV chargers, inverters, LiDAR, and infotainment systems. These connectors feature high currents, high speeds, robust designs, durability in harsh environments, and automotive industry standardization. Hirose Electric connectors are built to withstand extreme vibration, moisture, and temperature, providing reliable performance.

ZE064W Small Waterproof Automotive Connectors

Hirose Electric ZE064W connectors are a line of small, waterproof connectors for use in automotive and industrial applications. These connectors feature IP67/IP69K ratings when mated, mating keys to prevent mismating, and a retainer for increased contact reliability. Vibration resistance and contact reliability is improved drastically through the use of a dual-layer spring, and a 3-point contact design. Hirose Electric ZE064W connectors are suitable for harsh environments, such as industrial and automotive applications.
