868-22-005-00-001101

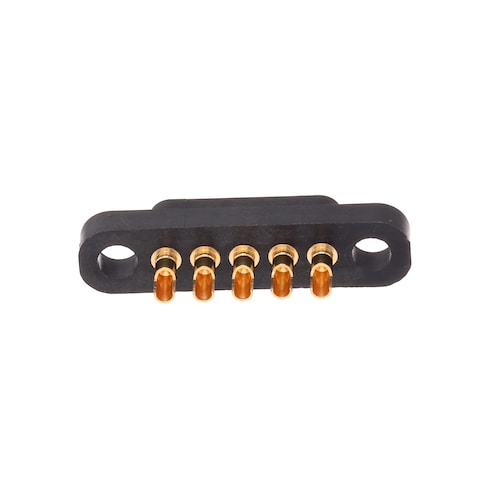

Name: Mill-Max 868-22-005-00-001101
Brand: Mill-Max
SKU: 575-8682200500001100
Price: 24.63 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

575-8682200500001100

Mfr. No:

868-22-005-00-001101

Mfr.:

Mill-Max

Description:

Headers & Wire Housings STD SPRING-LOADED CONNECTOR

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 71

Stock:: 71 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	24,63 €	24,63 €
	20,44 €	204,40 €
	19,46 €	544,88 €
	18,53 €	1.037,68 €
	17,65 €	1.976,80 €
	16,58 €	4.178,16 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Mill-Max
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Spring-Loaded
Number of Positions:	5 Position
Pitch:	4 mm (0.157 in)
Number of Rows:	1 Row
Mounting Style:	Through Hole
Termination Style:	Solder Cup
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	868
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Mill-Max
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	14
Subcategory:	Headers & Wire Housings

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
CAHTS:: 8536690090
USHTS:: 8536698000
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

868 Series SLC Connectors

Mill-Max 868 Series Spring-Loaded Connectors (SLC) are highly durable rugged target connectors for use on 4mm grid wire termination. These connectors include solder-cups to accommodate wire and cable attachment along with flanged insulators and fastening options. The 868 series connectors are available in the flat or concave face, providing an additional surface area for mating through hole or wire termination spring-loaded connectors. Mill-Max 868 Series connectors come in 2 to 6 position options and feature uniformly aligned solder-cup pins to facilitate efficient soldering of wires up to 16 AWG. These old plated and precision machined brass components ensure the highest conductivity, corrosion resistance, and durability.
