105431-2308

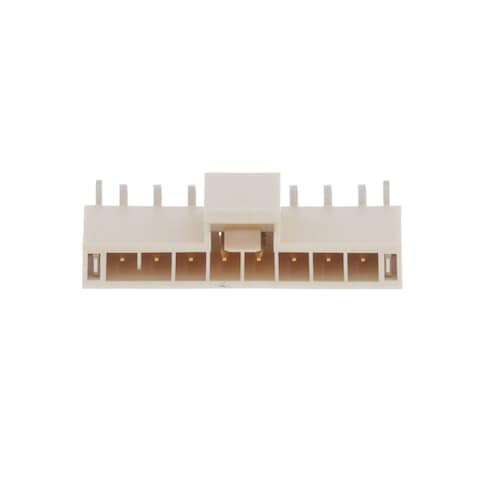

Name: Molex 105431-2308
Brand: Molex
SKU: 538-105431-2308
Price: 4.96 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-105431-2308

Mfr. No:

105431-2308

Mfr.:

Molex

Description:

Headers & Wire Housings Nano-Fit 2.5mm Vrt Hdr SMT SR 8Ckt GW

Datasheet:

105431-2308 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 105431-2308

In Stock: 595

Stock:: 595 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 595 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,96 €	4,96 €
	4,52 €	45,20 €
	4,27 €	106,75 €
	4,18 €	209,00 €
	3,97 €	397,00 €
	3,48 €	870,00 €
	3,38 €	2.028,00 €
	2,88 €	3.456,00 €
	2,68 €	8.040,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Power
Number of Positions:	8 Position
Pitch:	2.5 mm (0.098 in)
Number of Rows:	1 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	105431
Tradename:	Nano-Fit
Application:	Wire-to-Board, Power
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 115 C
Brand:	Molex
Contact Material:	Tin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	6.5 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Natural
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	300
Subcategory:	Headers & Wire Housings
Voltage Rating:	250 VAC
Part # Aliases:	1054312308 01054312308

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Fit Family Connectors

Molex Fit Dual-Row Connectors provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex Fit power connectors range from the 2.50mm pitch Nano-Fit to the 5.7mm pitch Mega-Fit connectors. These off-the-shelf connectors can be modified, customized, or adapted to meet virtually any application need.

Nano-Fit 2.5mm Pitch Power Connectors

Molex Nano-Fit 2.5mm Pitch Power Connectors provide a space-saving solution to the design challenge of choosing between exposed terminals or space-greedy protected headers. The Nano-Fit connectors are fully isolated compact connectors that deliver up to 8A with keying options and optional terminal position assurance (TPA). Multiple mechanical keying and color-coded options aid in the prevention of cross-mating, which enables faster assembly times. An optional TPA retainer ensures that the terminals are fully seated in the housing, reducing back out. The connectors also feature a positive-lock housing with an anti-snag design preventing accidental disengagement. Molex Nano-Fit 2.5mm Pitch Power Connectors are ideal for use in consumer/home appliances, telecommunication/networking, automotive, lighting, aerospace/defense, industrial, and medical applications.
