1200850013

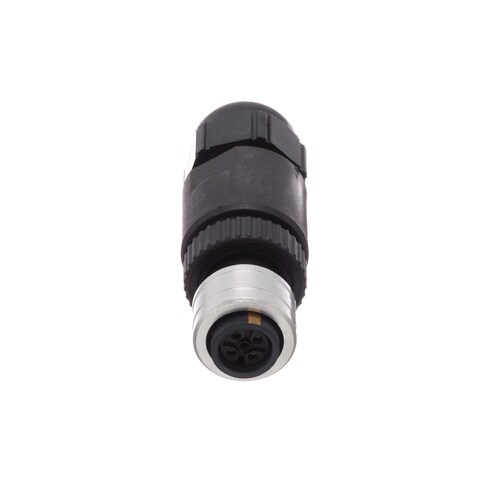

Name: Molex 1200850013
Brand: Molex
SKU: 538-1200850013
Price: 31.24 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

538-1200850013

Mfr. No:

1200850013

Mfr.:

Molex

Description:

Circular Metric Connectors M12U ATTACHABLE 4P FP ST

Datasheet:

1200850013 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	31,24 €	31,24 €
	28,46 €	284,60 €
	28,32 €	708,00 €
	26,88 €	1.344,00 €
	26,64 €	2.664,00 €
	25,80 €	6.450,00 €
1.000	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Circular Metric Connectors
RoHS:
REACH - SVHC:
Product Type:	Circular Metric Connectors
Number of Contacts:	4 Contact
Thread Size:	M12
Termination Style:	Screw
Current Rating:	4 A
Voltage Rating:	250 VAC, 300 VDC
IP Rating:	IP69K
Series:	120085
Brand:	Molex
Contact Gender:	Socket (Female)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	PL
Locking Mechanism:	Push Turn
Mounting Style:	Field Attachable-Installable
Product:	Connectors
Shell Style:	Receptacle
Factory Pack Quantity:	1
Subcategory:	Circular Connectors
Tradename:	Brad Ultra-Lock
Type:	Straight
Unit Weight:	20,520 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1200850013 Datasheet

RoHS Certificate (PDF)

TARIC:: 8536699099
CNHTS:: 8538900000
CAHTS:: 8536690030
USHTS:: 8536694020
JPHTS:: 853669000
KRHTS:: 8536699000
BRHTS:: 85366990
ECCN:: EAR99

Brad Connectors

Molex Brad Connectors are designed to simplify the installation process and provide reliable performance even in the most demanding industrial environments. This product line includes a wide range of connectors, including high-pin-density M12 connectors, M8 connectors, IP67-rated connectors, and other industrial-grade connectors.

Brad Ultra-Lock Connectors

Molex Brad Ultra-Lock Connectors incorporate a mechanical locking design and a unique radial-seal that deliver unsurpassed performance. The patented push-to-lock technology provides a simple and secure operator-independent connection. This positive locking design provides built-in reliability that eliminates connector related intermittent signals in the harshest environments. Fewer intermittent signals mean less downtime and better productivity. The unique radial o-ring seal design, similar to what is found in hydraulic connectors, provides a more robust protection against water ingress even in high-pressure wash-down environments.

Environmentally Sealed Connectors

Molex Environmentally Sealed Connectors provide an ideal interconnect solution for heavy-duty and harsh-environment applications. Molex offers a wide range of standard-sealed and custom-sealed interconnect systems. These connectors are suitable for applications requiring ruggedized sealed plugs, receptacles, and power connectors, including IP67 or IP68 ratings.
