170340-1020

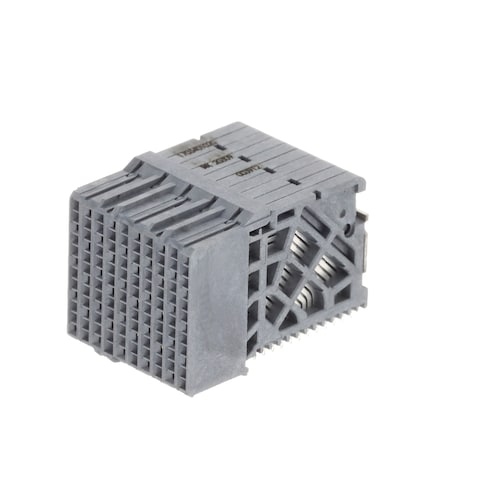

Name: Molex 170340-1020
Brand: Molex
SKU: 538-170340-1020
Price: 26.3 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-170340-1020

Mfr. No:

170340-1020

Mfr.:

Molex

Description:

High Speed/Modular Connectors Impact 85 DC 4x10 Open Sn

Datasheet:

170340-1020 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 170340-1020

In Stock: 1

Stock:: 1 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	26,30 €	26,30 €
	22,35 €	223,50 €
	21,35 €	533,75 €
	20,66 €	1.033,00 €
	19,97 €	1.997,00 €
	18,87 €	4.755,24 €
	18,32 €	9.233,28 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	High Speed/Modular Connectors
RoHS:
Product:	Receptacles
Number of Positions:	120 Position
Number of Rows:	12 Row
Pitch:	1.9 mm
Termination Style:	Press Fit
Contact Plating:	Gold
Series:	170340
Packaging:	Tray
Brand:	Molex
Contact Material:	Tin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	SG
Current Rating:	750 mA
Housing Colour:	Gray
Housing Material:	Thermoplastic (TP)
Maximum Operating Temperature:	+ 85 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Right Angle
Product Type:	High Speed / Modular Connectors
Factory Pack Quantity:	252
Subcategory:	Backplane Connectors
Tradename:	Impact
Voltage Rating:	30 V
Unit Weight:	13,282 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

170340-1020 Datasheet

Images

3D Adobe Image PDF (PDF)

Models

PCN

Global Change Notification (GCN) (PDF)

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Impact Backplane Connector System

Molex Impact Backplane System features data rates up to and beyond 25Gbps plus superior signal density of up to 30 pairs per cm. This system pushes the density envelope to meet next generation high-speed demands with one of the most versatile offerings in the market. Molex Impact Backplane System has a simple 1.90mm by 1.35mm grid that provides PCB routing flexibility.

High-Speed Solutions

Molex High-Speed Solutions meet the most stringent high-speed performance requirements. The broad connector portfolio supports a wide range of data rates in multiple sizes and shapes. High-speed interconnect solutions provide the flexibility and scalability required to meet the demands of next-generation systems.
