171856-0105

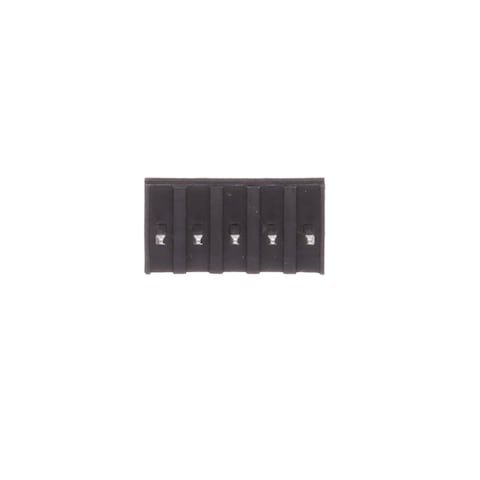

Name: Molex 171856-0105
Brand: Molex
SKU: 538-171856-0105
Price: 0.46 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-171856-0105

Mfr. No:

171856-0105

Mfr.:

Molex

Description:

Headers & Wire Housings KK RPC 100 Hdr FrLk Vert 5Ckt Tin

Datasheet:

171856-0105 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 5.597

Stock:: 5.597 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,464 €	0,46 €
	0,405 €	4,05 €
	0,356 €	8,90 €
	0,315 €	31,50 €
	0,282 €	70,50 €
	0,23 €	230,00 €
	0,216 €	432,00 €
	0,213 €	1.278,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Locking
Number of Positions:	5 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	1 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Mating Post Length:	7.49 mm (0.295 in)
Termination Post Length:	3.56 mm (0.14 in)
Series:	171856
Tradename:	KK
Application:	Wire-to-Board, Wire-to-Wire, Power, Signal
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Brand:	Molex
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	IN
Flammability Rating:	UL 94 V-1
Housing Colour:	Black
Housing Material:	Nylon
Latching Type:	Friction Lock
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	2000
Subcategory:	Headers & Wire Housings
Part # Aliases:	1718560105 01718560105
Unit Weight:	587 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

171856-0105 Datasheet (PDF)

PCN

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

KK Connectors

Molex KK Interconnection System consists of connectors that form the building block for creating thousands of different configurations. This system offers polarization features that ensure correct mating. The system incorporates offset header entry holes that provide +180°C polarization and allows both power and signal to carry through the same housing. This connector system also enables loading with optional polarization keys and pegs that ensure the one-way mating of headers and housings. Molex KK Interconnection System comes with customizable KK headers that offer more polarization options and design configurations. These include headers with voided pins, customized pin lengths, kinked PC tails, and varying tin or gold plating options.

Power Solutions

Molex is uniquely equipped to provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex's wide selection of power connectors ranges from versatile to popular and proven. Designers can achieve power delivery and power distribution with Molex's vast array of power connectors.

KK 254 RPC Headers

Molex KK 254 Reflow Process Compatible (RPC) Connector System supports a lead-free solder process and delivers up to 5A and 250V per circuit in a 2.54mm pitch package. KK 254 headers are designed to support RoHS lead-free initiatives. Designed with a nylon housing, the wire-to-board system can withstand temperatures up to +260°C. Molex KK 254 series connectors are ideal for use in industries such as automotive, medical, and consumer.
