172258-3108

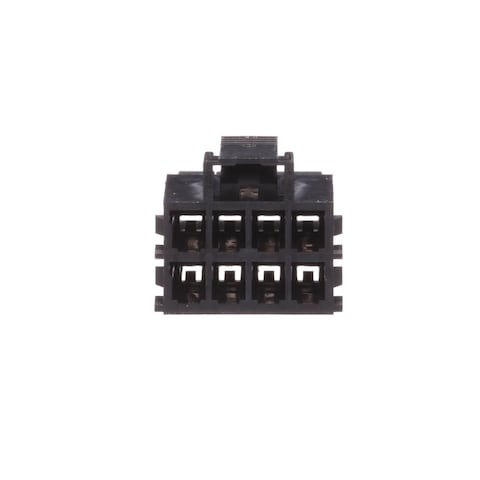

Name: Molex 172258-3108
Brand: Molex
SKU: 538-172258-3108
Price: 0.55 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-172258-3108

Mfr. No:

172258-3108

Mfr.:

Molex

Description:

Headers & Wire Housings ULTRA-FIT HSG Dual 8Ckt Black

Datasheet:

172258-3108 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 172258-3108

In Stock: 2.194

Stock:: 2.194 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,559 €	0,56 €
	0,492 €	4,92 €
	0,45 €	11,25 €
	0,406 €	40,60 €
	0,371 €	92,75 €
	0,299 €	299,00 €
	0,28 €	560,00 €
	0,267 €	1.602,00 €
	0,254 €	2.540,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	8 Position
Pitch:	3.5 mm (0.138 in)
Number of Rows:	2 Row
Row Spacing:	4.6 mm (0.181 in)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Series:	172258
Tradename:	Ultra-Fit
Application:	Wire-to-Board, Power
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Bulk
Brand:	Molex
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Female
Housing Material:	Nylon
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	2000
Subcategory:	Headers & Wire Housings
Part # Aliases:	1722583108 01722583108
Unit Weight:	2,381 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

172258-3108 Datasheet

Images

Models

STP File (Zip)

Technical Resources

Product Literature (PDF)

RoHS Certificate (PDF)

TARIC:: 8547200000
CNHTS:: 8547200000
USHTS:: 8538906000
ECCN:: EAR99

Ultra-Fit™ Power Connectors

Molex Ultra-Fit™ Power Connectors eliminate same-circuit-size cross mating and reduce terminal backout occurrences. The space saving, low mating force, high density Ultra-Fit power connector has a 12A or 14A current rating, 3.5mm pitch, and is available with color coding and mechanical keying options. Molex Ultra-Fit Power Connectors offering the premium housing features of proven Mini-Fit® and Micro-Fit 3.0™ connector systems. Color-coded housings mitigate the risk of mismating. An optional TPA retainer significantly reduces terminal backout. The streamlined design is 17% smaller than similar power connectors. An ultra-low mating force reduces operator fatigue when mating numerous high-circuit connectors.
Learn More

Ultra-Fit Tangless Power Connectors

Molex Ultra-Fit Tangless Power Connectors are tangless wire-to-board connectors that provide more options for increasing terminal retention. Molex Ultra-Fit Tangless Power Connectors eliminate the need for designers to choose a V0 flammability-rated receptacle or Glow Wire-capable receptacle. The tangless receptacles offer both advantages on the same connector. These Ultra-Fit tangless connectors enhance existing Ultra-Fit receptacles, terminals, and TPA with their thumb latch design, tangless terminal locking tab feature, and tangless terminal receptacle design. The tangless devices do not require any changes to existing headers or plugs. Applications include automotive, home appliances, and commercial vehicles.

Fit Family Connectors

Molex Fit Dual-Row Connectors provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex Fit power connectors range from the 2.50mm pitch Nano-Fit to the 5.7mm pitch Mega-Fit connectors. These off-the-shelf connectors can be modified, customized, or adapted to meet virtually any application need.
