216571-1002

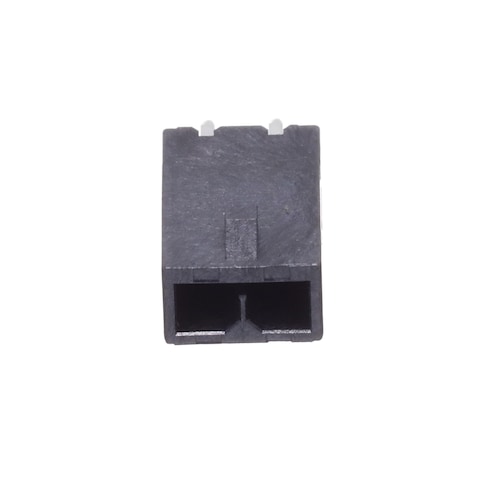

Name: Molex 216571-1002
Brand: Molex
SKU: 538-216571-1002
Price: 0.68 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-216571-1002

Mfr. No:

216571-1002

Mfr.:

Molex

Description:

Headers & Wire Housings Micro-Fit+ RA Header 2 Circuits Black

Datasheet:

216571-1002 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 216571-1002

In Stock: 2.366

Stock:: 2.366 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 19 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,688 €	0,69 €
	0,47 €	4,70 €
	0,467 €	11,68 €
	0,458 €	131,90 €
	0,456 €	262,66 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	PCB Receptacle
Number of Positions:	2 Position
Pitch:	3 mm (0.118 in)
Number of Rows:	1 Row
Mounting Style:	PCB Mount
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Plating:	Tin
Series:	216571
Tradename:	Micro-Fit+
Application:	Wire-to-Board, Power
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Tray
Brand:	Molex
Contact Material:	Copper Alloy
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	13 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Receptacle
Housing Material:	Liquid Crystal Polymer (LCP)
Insulation Resistance:	1 GOhms
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	288
Subcategory:	Headers & Wire Housings
Voltage Rating:	600 VAC/600 VDC
Part # Aliases:	2165711002 02165711002

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Technical Resources

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Micro-Fit+ Connectors

Molex Micro-Fit+ Connectors offer superior design options for flexibility and efficient assembly. The connectors offer a high current rating of up to 13.5A with a 3mm pitch and use the same amount of space that smaller connectors occupy. Features include a smaller PCB footprint, a reduced mating force of 40%, and an enhanced TPA design that provides stability and security for the terminals inside the receptacle. Molex Micro-Fit+ applications include consumer, telecommunication/networking, medical, sustainable energy, and automotive.
