43223-6107

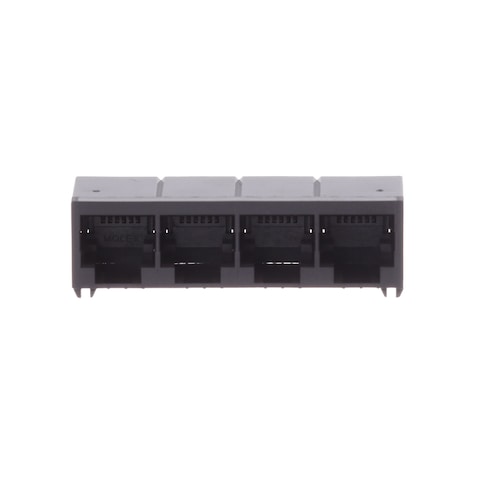

Name: Molex 43223-6107
Brand: Molex
SKU: 538-43223-6107
Price: 5.99 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

538-43223-6107

Mfr. No:

43223-6107

Mfr.:

Molex

Description:

Modular Connectors / Ethernet Connectors JK RA UNSHLDED 6/6/4 flangeless ganged

Datasheet:

43223-6107 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 43223-6107

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 420
Factory Lead Time:: 14

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,99 €	5,99 €
	5,41 €	54,10 €
	5,12 €	128,00 €
	4,99 €	174,65 €
	4,74 €	497,70 €
	4,24 €	1.187,20 €
	3,99 €	2.094,75 €
	3,87 €	3.928,05 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Modular Connectors / Ethernet Connectors
RoHS:
Product:	Connectors
Type:	Ganged
Gender:	Jack (Female)
USOC Codes:	RJ11
Configuration:	1x4
Number of Positions/Contacts per Port:	6P6C
Shielding:	Unshielded
Performance Category:	Cat 3
Mounting Style:	Through Hole
Mounting Angle:	Right Angle
Termination Style:	Solder
Current Rating:	1.5 A
Voltage Rating:	150 VAC
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Color:	Black
Tab Direction:	Tab Down
Series:	43223
Packaging:	Tray
Application:	10 Base-T
Brand:	Molex
Contact Material:	Tin
Contact Plating:	Gold
Country of Assembly:	CN
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Number of Contacts:	6 Contact
Number of Ports:	4 Port
Number of Positions:	6 Position
Pitch:	1.02 mm
Product Type:	Modular Connectors / Ethernet Connectors
Factory Pack Quantity:	35
Subcategory:	Modular Connectors / Ethernet Connectors
Part # Aliases:	0432236107
Unit Weight:	9,458 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

43223-6107 Datasheet

Models

PCN

Product Change Notification 2024-06-06 (PDF)

RoHS Certificate (PDF)

TARIC:: 8536693000
CNHTS:: 8536901900
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Standard Modular Jacks

Molex Standard Modular Jacks ensure high performance and superior reliability across a wide range of Ethernet data speeds. These modular jacks deliver fleixibility for a variety of design needs and include RJ11 and RJ45 jacks in right-angle or vertical top/bottom-entry styles with through-hole or SMT soldering. The jacks come in single-port or ganged and stacked multi-port versions. Molex Standard Modular Jacks offer Cat 3, Cat 5, and Cat 5e speeds and a variety of options, including shielding for advanced EMI/RFI protection. Applications include a wide range of consumer, home appliance, medical, telecom/networking, and industrial uses.
