45586-0005

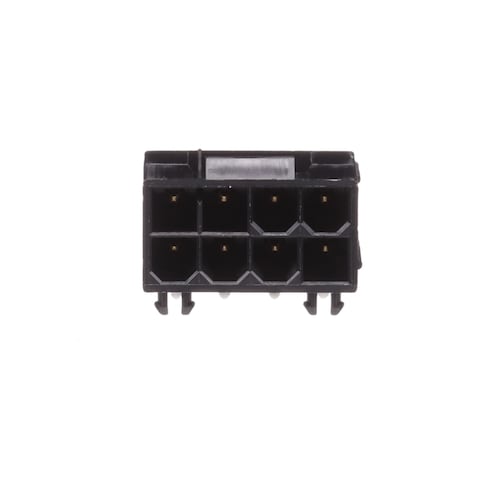

Name: Molex 45586-0005
Brand: Molex
SKU: 538-45586-0005
Price: 3.9 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-45586-0005

Mfr. No:

45586-0005

Mfr.:

Molex

Description:

Headers & Wire Housings MiniFitJr RA 8Ckt Gen 3

Datasheet:

45586-0005 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 4.423

Stock:: 4.423 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 19 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,90 €	3,90 €
	3,45 €	34,50 €
	3,23 €	80,75 €
	3,04 €	152,00 €
	2,92 €	248,20 €
	2,74 €	698,70 €
	2,56 €	1.305,60 €
	2,44 €	2.488,80 €
	2,32 €	5.916,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Connector Kit
Number of Positions:	8 Position
Pitch:	4.2 mm (0.165 in)
Number of Rows:	2 Row
Mounting Angle:	Right Angle
Contact Plating:	Gold
Series:	45586
Tradename:	Mini-Fit Jr.
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Brand:	Molex
Contact Material:	Tin
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Current Rating:	9 A
Flammability Rating:	UL 94 V-0
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	85
Subcategory:	Headers & Wire Housings
Voltage Rating:	600 VAC/DC
Part # Aliases:	0455860005

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Mini-Fit Connector Family

Molex Mini-Fit Jr. and Mini-Fit Plus Power Connectors deliver up to 9A and 13A, respectively. Blind-mating and terminal-position assurance (TPA) options provide a versatile connector system for a wide range of applications. Typical applications for these Molex connectors include telecommunications / networking, industrial, home appliances, medical, and automotive.

Fit Family Connectors

Molex Fit Dual-Row Connectors provide power delivery and power distribution in wire-to-wire, wire-to-board, and board-to-board configurations. Molex Fit power connectors range from the 2.50mm pitch Nano-Fit to the 5.7mm pitch Mega-Fit connectors. These off-the-shelf connectors can be modified, customized, or adapted to meet virtually any application need.

Mini-Fit Jr. Connectors

Molex Mini-Fit Jr. Connectors are ideal for higher-current / higher-density applications that require design flexibility for wire-to-wire and wire-to-board configurations. Molex Mini-Fit Jr. connectors are made for power applications up to 9.0A per circuit. The connectors feature fully isolated terminals, positive housing locks, low-engagement forces, and polarized housings. They are UL recognized, CSA approved, and TUV licensed. All components are lead free and RoHS compliant. Molex Mini-Fit Jr. Connectors are available in a single row or dual row, 2 to 24 circuit options, and multiple plating and material selections.
