45971-5315

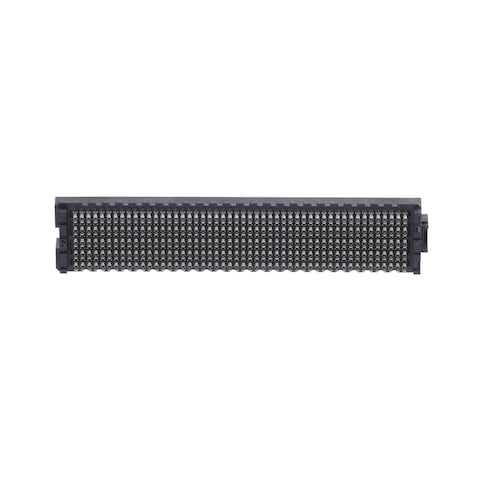

Name: Molex 45971-5315
Brand: Molex
SKU: 538-45971-5315
Price: 19.9 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-45971-5315

Mfr. No:

45971-5315

Mfr.:

Molex

Description:

Board to Board & Mezzanine Connectors SeaRay Recpt 10x50x6.6 Tin

Datasheet:

45971-5315 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 189

Stock:: 189 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 189 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	19,90 €	19,90 €
	16,91 €	169,10 €
	15,85 €	396,25 €
	15,09 €	754,50 €
	14,59 €	1.459,00 €
	13,79 €	3.585,40 €
	13,38 €	6.957,60 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Receptacles
Number of Positions:	500 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	10 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	6.5 mm
Contact Plating:	Gold
Contact Material:	Copper
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	45971
Brand:	Molex
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MX
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	1
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	SEARAY
Part # Aliases:	459715315 0459715315

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

45971-5315 Datasheet (PDF)

PCN

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

High-Speed Solutions

Molex High-Speed Solutions meet the most stringent high-speed performance requirements. The broad connector portfolio supports a wide range of data rates in multiple sizes and shapes. High-speed interconnect solutions provide the flexibility and scalability required to meet the demands of next-generation systems.
