46562-9201

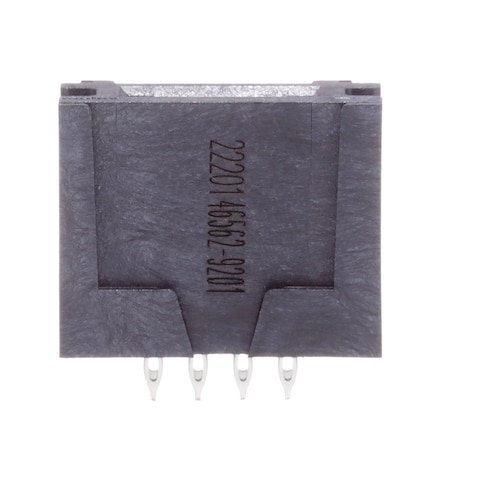

Name: Molex 46562-9201
Brand: Molex
SKU: 538-46562-9201
Price: 5.79 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-46562-9201

Mfr. No:

46562-9201

Mfr.:

Molex

Description:

Power to the Board 1 DC Power Circuit Press Fit Tail Vert

Datasheet:

46562-9201 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 46562-9201

In Stock: 202

Stock:: 202 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Quantities greater than 202 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,79 €	5,79 €
	5,24 €	52,40 €
	4,95 €	123,75 €
	4,82 €	241,00 €
	4,58 €	458,00 €
	4,10 €	1.025,00 €
	3,86 €	1.930,00 €
	3,37 €	3.370,00 €
	3,21 €	9.244,80 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Power to the Board
RoHS:
Product Type:	Power to the Board
Contact Gender:	Socket (Female)
Current Rating:	60 A
Voltage Rating:	600 VAC, 250 VDC
Number of Positions:	1 Power
Mounting Style:	Through Hole
Termination Style:	Press Fit
Pitch:	5.5 mm
Series:	46562
Packaging:	Tray
Tradename:	EXTreme Ten60Power
Brand:	Molex
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	ID
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Number of Rows:	1 Row
Product:	PCB Receptacles
Factory Pack Quantity:	1440
Subcategory:	Power Connectors
Part # Aliases:	465629201 0465629201

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

46562-9201 Datasheet

Models

PCN

Product Change Notification 2025-6-10 (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

EXTreme Ten60Power Hybrid Power/Signal Connectors

Molex EXTreme Ten60Power Hybrid Power-and-Signal Connectors provide up to 260A per linear inch, fast response times, and easy configuration for individual design requirements. The series is designed for board-to-board, wire-to-board, and panel-to-board uses that require high current density, low power loss, and a high degree of design flexibility. The Molex EXTreme Ten60Power Hybrid Power-and-Signal Connectors are ideal for use in a variety of data communication and telecommunication equipment as well as consumer electronics.

EXTreme Power Connectors

Molex EXTreme Power Connectors are specifically designed to support high-current applications. To operate at peak efficiency, today's data centers require interconnects that accommodate significant amounts of power, and Molex EXTreme power products meet those challenges. These power connectors are available in an extensive range of configurations for seamless integration into new and existing applications.
