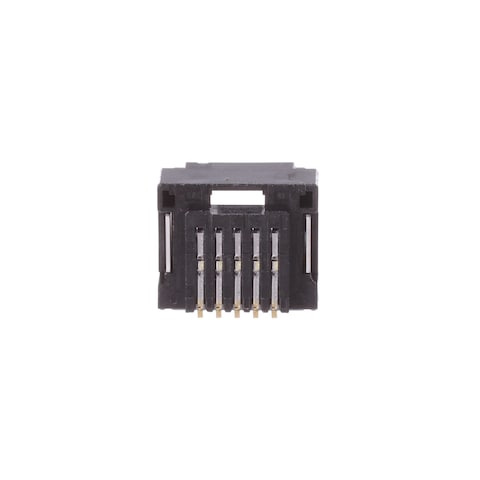

Name: Molex 505448-1091
Brand: Molex
SKU: 538-505448-1091
Price: 2.36 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-505448-1091

Mfr. No:

505448-1091

Mfr.:

Molex

Description:

Headers & Wire Housings 1.25WB DL RA 10CKT BK G010

Datasheet:

505448-1091 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 505448-1091

In Stock: 3.024

Stock:: 3.024 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 30 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,36 €	2,36 €
	2,06 €	20,60 €
	2,00 €	50,00 €
	1,83 €	183,00 €
	1,69 €	422,50 €
	1,48 €	740,00 €
	1,38 €	1.380,00 €
	1,32 €	3.960,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	10 Position
Pitch:	1.25 mm (0.049 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Right Angle
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	505448
Tradename:	Micro-Lock Plus
Application:	Wire-to-Board, Signal
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Brand:	Molex
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Current Rating:	1.5 A
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	3000
Subcategory:	Headers & Wire Housings
Voltage Rating:	50 VAC/DC
