MGJ6D1218025MC-R13

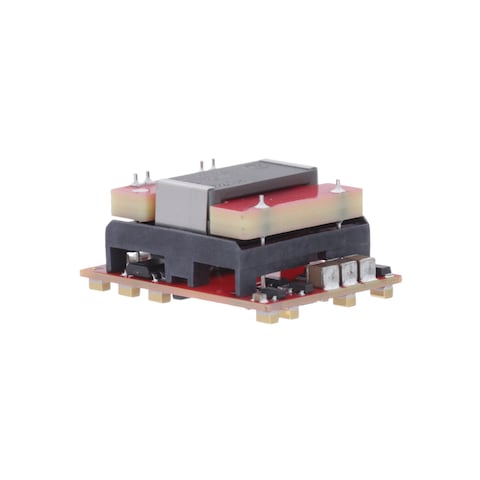

Name: Murata MGJ6D1218025MC-R13
Brand: Murata Power Solutions
SKU: 81-MGJ6D1218025MCR13
Price: 14.55 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

81-MGJ6D1218025MCR13

Mfr. No:

MGJ6D1218025MC-R13

Mfr.:

Murata Power Solutions

Description:

DC/DC Converters - SMD

Datasheet:

MGJ6D1218025MC-R13 Datasheet (PDF)

More Information

Learn more about Murata Power Solutions MGJ6D1218025MC-R13

In Stock: 76

Stock:: 76

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 91
Factory Lead Time:: 38

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	14,55 €	14,55 €
	14,48 €	72,40 €
	14,38 €	143,80 €
	14,22 €	355,50 €
	14,15 €	707,50 €
	13,74 €	1.374,00 €
	13,62 €	3.405,00 €
	13,61 €	6.805,00 €
Full Reel (Order in multiples of 92)
	14,15 €	1.301,80 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Murata
Product Category:	DC/DC Converters - SMD
RoHS:
Isolation:	Isolated
Number of Outputs:	2 Output
Output Power:	5.27 W
Input Voltage, Nominal:	12 V
Input Voltage - Min:	9 V
Input Voltage - Max:	18 V
Output Voltage-Channel 1:	18 V
Output Current-Channel 1:	293 mA
Output Voltage-Channel 2:	- 2.5 V
Output Current-Channel 2:	293 mA
Isolation Voltage:	5.7 kV
Length:	31.24 mm
Width:	14.19 mm
Height:	14.19 mm
Industry:	Medical, Industrial
Series:	MGJ6
Brand:	Murata Power Solutions
Country of Assembly:	CN
Country of Diffusion:	Not Available
Country of Origin:	CN
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 40 C
Moisture Sensitive:	Yes
Mounting Style:	SMD/SMT
Packaging:	Reel
Packaging:	Cut Tape
Product:	Isolated
Product Type:	Isolated DC-DC Converters
Factory Pack Quantity:	92
Subcategory:	DC-DC Converters

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

MGJ6D1218025MC-R13 Datasheet (PDF)

Conflict Material Declaration (Spreadsheet)

TARIC:: 8504409590
USHTS:: 8504409580
JPHTS:: 850440090
ECCN:: EAR99

MGJ6 6W Isolated DC/DC Converters

Murata Power Solutions MGJ6 6W Isolated DC/DC Converters offer configurable triple output voltages of +15V/-5V, +15V/-10V, and +20V/-5V. The series is ideal for powering high side and low side gate drive circuits for IGBTs, Silicon Carbide, and MOSFETs in bridge circuits. MGJ6 includes new thru-hole SIP (SC suffix), DIP (DC suffix), and WLP parts as well as a surface mount option (MC suffix). MGJ6 DC/DC Converters offer a choice of asymmetric output voltages, providing optimum drive levels for best system efficiency and EMI. Murata Power Solutions MGJ6 Series meets the high isolation and dv/dt requirements commonly seen in bridge circuits used in motor drives and inverters. The series features a disable/frequency synchronization pin that simplifies EMC filter design. MGJ6 protection features include short circuit protection and overload protection.

MGJ DC/DC Converters

Murata Power Solutions MGJ DC/DC Converters are ideal for powering high-side and low-side gate drive circuits for IGBTs, silicon carbide, and MOSFETs in bridge circuits. A choice of asymmetric output voltages allows optimum drive levels for ideal system efficiency and EMI. Murata Power Solutions MGJ DC-DC Converters are available in 1W, 2W, 3W, and 6W.
