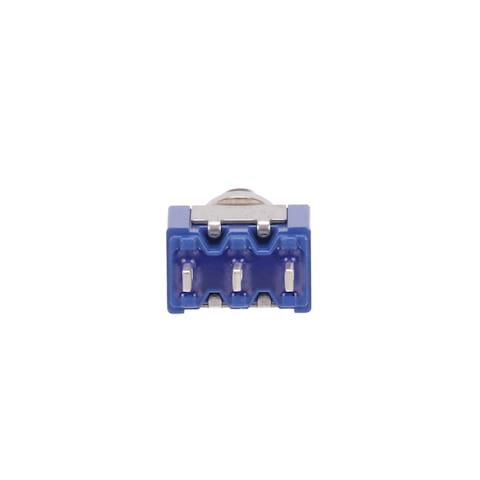

8R1011-N-Z

Name: Nidec 8R1011-N-Z
Brand: Nidec Components
SKU: 229-8R1011-N-Z
Price: 8.31 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

229-8R1011-N-Z

Mfr. No:

8R1011-N-Z

Mfr.:

Nidec Components

Description:

Pushbutton Switches SPDT, ON-ON, snap-action pushbutton, 1/4"-40 threaded bushing, solder lug terminals, 3A @ 125V AC

Datasheet:

8R1011-N-Z Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	8,31 €	8,31 €
	7,17 €	71,70 €
	6,76 €	169,00 €
	6,47 €	323,50 €
	6,18 €	618,00 €
	5,83 €	1.457,50 €
	5,57 €	2.785,00 €
	5,32 €	5.320,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Nidec
Product Category:	Pushbutton Switches
RoHS:
Series:	8R
Product:	Standard Switches
Type:	Sealed
Illuminated:	Non-Illuminated
Contact Form:	SPDT
Mounting Style:	Panel Mount
Switch Function:	ON - ON
Actuator:	Plunger, Round
Current Rating:	3 A, 4 A, 6 A
Voltage Rating DC:	30 VDC
Voltage Rating AC:	120 VAC, 250 VAC
Termination Style:	Solder Lug
Contact Plating:	Silver
Packaging:	Bulk
Brand:	Nidec Components
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Maximum Operating Temperature:	+ 85 C
Minimum Operating Temperature:	- 30 C
Product Type:	Pushbutton Switches
Factory Pack Quantity:	25
Subcategory:	Switches
Terminal Seal:	Epoxy

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

8R1011-N-Z Datasheet (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8536500090
USHTS:: 8536509035
ECCN:: EAR99
