PTFPCB

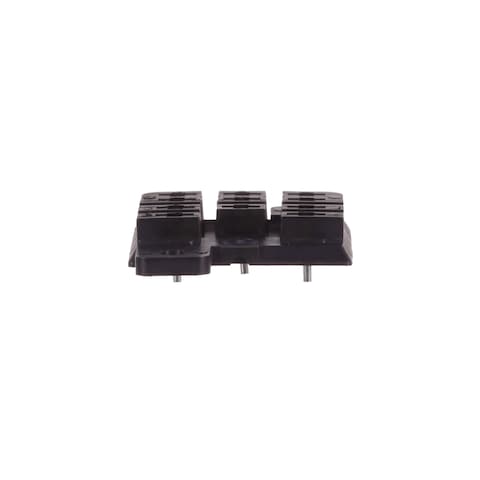

Name: Omron PTFPCB
Brand: Omron Automation and Safety
SKU: 653-PTFPCB
Price: 2.67 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

653-PTFPCB

Mfr. No:

PTFPCB

Mfr.:

Omron Automation and Safety

Description:

Relay Sockets & Fixings SOCKET FOR MJN

Datasheet:

PTFPCB Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Omron Automation and Safety PTFPCB

In Stock: 371

Stock:: 371 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,67 €	2,67 €
	2,37 €	23,70 €
	2,27 €	56,75 €
	2,26 €	113,00 €
	2,17 €	217,00 €
	2,07 €	517,50 €
	1,95 €	975,00 €
	1,59 €	1.590,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Omron
Product Category:	Relay Sockets & Fixings
RoHS:	N
Product:	Relay Sockets
Associated Relay Series:	MJN
Termination Style:	PCB
Brand:	Omron Automation and Safety
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Mounting Style:	Through Hole
Product Type:	Relay Sockets & Hardware
Series:	PTF
Factory Pack Quantity:	1
Subcategory:	Relays
Unit Weight:	9,100 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

PTFPCB Datasheet (PDF)

TARIC:: 8536699099
CNHTS:: 8536690000
CAHTS:: 8536690090
USHTS:: 8536698000
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

PTF Relay Sockets

Omron Industrial Automation PTF Relay Sockets offer up to a 10A current rating, 5% to 85% ambient operating humidity, and 1000MΩ insulation resistance. These sockets feature Push-In Plus technology and are used to save wiring work in comparison with traditional screw terminals. The PTF series has light insertion force and strong pull-out strength, achieving less wiring work and high reliability. OMRON Industrial Automation PTF Relay Sockets operate in a -40°C to +70°C temperature range.

Relays

Relays from Omron Electronics include PCB power relays, DC power relays, signal relays, solid-state relays, and automotive relays. Omron Electronics Relays support a wide range of capacities and applications.
