XG4A-3434

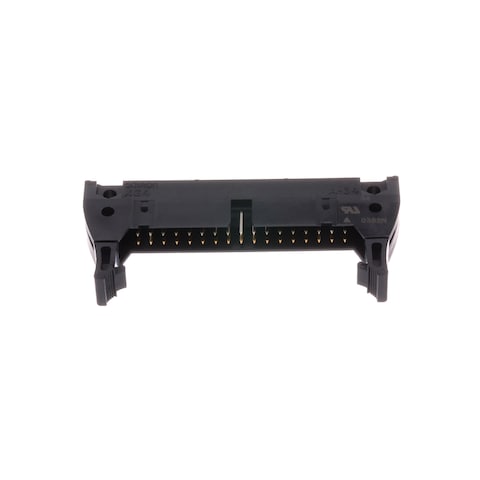

Name: Omron XG4A-3434
Brand: Omron Electronics
SKU: 653-XG4A-3434
Price: 2.15 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

653-XG4A-3434

Mfr. No:

XG4A-3434

Mfr.:

Omron Electronics

Description:

Rectangular Mil Spec Connectors Plug Long Lock 34P RightAngle 1Polarize

Datasheet:

XG4A-3434 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Omron Electronics XG4A-3434

In Stock: 549

Stock:: 549 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 26 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,15 €	2,15 €
	1,74 €	87,00 €
	1,67 €	167,00 €
	1,63 €	407,50 €
	1,48 €	740,00 €
	1,43 €	1.430,00 €
	1,39 €	3.475,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Omron
Product Category:	Rectangular Mil Spec Connectors
RoHS:
Product:	Flat Cable Connectors
Number of Positions:	34 Position
Number of Rows:	2 Row
Termination Style:	Solder Pin
Mounting Style:	Through Hole
Contact Gender:	Pin (Male)
Contact Plating:	Gold
MIL Type:	MIL-C-83503
Series:	XG4
Mounting Angle:	Right Angle
Brand:	Omron Electronics
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Current Rating:	3 A
Housing Material:	Polybutylene Terephthalate (PBT)
Insulation Resistance:	1 GOhms
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 55 C
Pitch:	2.54 mm
Product Type:	Rectangular MIL Spec Connectors
Factory Pack Quantity:	50
Subcategory:	MIL-Spec / MIL-Type
Voltage Rating:	300 V
Part # Aliases:	XG4A3434BYOMZ

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
CNHTS:: 8538900000
CAHTS:: 8536690090
USHTS:: 8536694051
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

EV Residential V2H Charging Solutions

Omron Electronics features a range of electronic components for applications involving electric vehicle (EV) residential vehicle-to-home (V2H) charging. The increasing popularity of EVs means drivers need a convenient place to charge them, such as their homes. Omron V2H charging components are designed to provide manufacturers with the reliability and durability required for at-home charging solutions.

EV DC Fast Charging Solutions

Omron Electronics designs a wide array of electronic components for electric vehicle (EV) DC charging applications. DC fast chargers are installed at locations such as highway service areas and busy metro areas. These chargers provide drivers with quick charging for their EVs. Omron EV DC charging components offer reliability and precision to help manufacturers create EV chargers with short charging times.

PV Inverter Solutions

Omron Electronics provides electronic components for applications in PV inverters. For PV inverters in residential environments, Omron offers relays that feature rapid shutdown systems, ground fault detection, DC disconnect, and DC discharge and inrush protection. Additionally, for PV inverters for industrial environments, there are relays for DC discharge, AC disconnect, and ground fault detection.

EV AC Charging Solutions

Omron Electronics offers electronic components for electric vehicle (EV) AC charging applications. With the increasing demand for EVs worldwide, the charging infrastructure is also expanding. This includes the number of EV charging stations in homes and cities. There is a growing trend to develop EV chargers with high-capacity output to achieve shorter charging times. Omron EV AC charging components are engineered with precision to help manufacturers reach that goal.

XG4 Flat Cable Connectors

Omron Electronics XG4 Flat Cable Connectors are industry-standard circuit board connectors that conform to MIL standards. XG4M-U connectors feature lock levers on the strain relief/socket instead of on the plug, saving 24% of space. The XG4C space-saving box-type plugs are also available. Omron XG4 Flat Cable Connectors can be used with XG5 IDC connectors for discrete wires, XG8 original PCB plugs, and XG2 IDC bus connectors for PCBs. The original PCB plugs (XG8) and box-type plugs (XG4C) can be locked using external XG5Z and XG4Z lock levers.
