617280

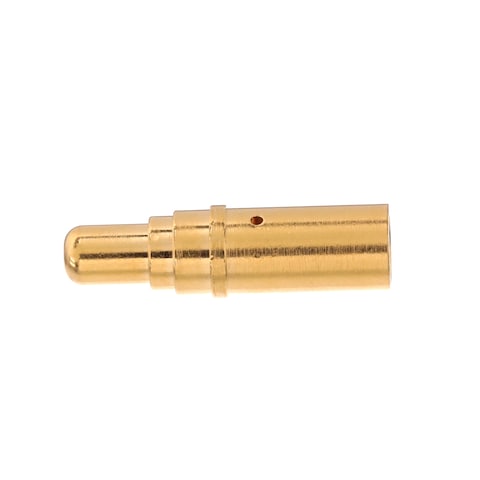

Name: Radiall 617280
Brand: Radiall
SKU: 501-617280
Price: 71.83 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

501-617280

Mfr. No:

617280

Mfr.:

Radiall

Description:

Heavy Duty Power Connectors EPX CT #5 PIN POWER

Datasheet:

617280 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Radiall 617280

In Stock: 20

Stock:: 20 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 5 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	71,83 €	71,83 €
	65,63 €	1.640,75 €
	60,79 €	3.039,50 €
	60,06 €	6.006,00 €
250	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Radiall
Product Category:	Heavy Duty Power Connectors
REACH - SVHC:
Series:	EPXA & B / QM
Product:	Contacts
Termination Style:	Crimp
Insert/Contact Gender:	Pin (Male)
Contact Plating:	Gold
Contact Material:	Copper Alloy
Wire Gauge Min:	10 AWG
Wire Gauge Max:	8 AWG
Packaging:	Bulk
Tradename:	EPX
Brand:	Radiall
Contact Gender:	Pin (Male)
Country of Assembly:	FR
Country of Diffusion:	Not Available
Country of Origin:	FR
Product Type:	Heavy Duty Power Connectors
Factory Pack Quantity:	1
Subcategory:	Power Connectors
Unit Weight:	4,350 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

617280 Datasheet (PDF)

PCN

Product Change Notification (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536901000
CNHTS:: 8536901100
CAHTS:: 8536900020
USHTS:: 8536904000
JPHTS:: 853690000
MXHTS:: 8536902800
BRHTS:: 85366990
ECCN:: EAR99

EPX® Rectangular Modular Connectors

Radiall EPX® Rectangular Modular Connectors are space-saving with high-density inserts and stackable shells. The EPX connectors are modular and expandable with lightweight shells from size 1 to multi-gang versions. Radiall EPX inserts can cover various contact technologies including signal, power, quadrax, and fiber optics. The backshells of these heavy-duty power connectors are available in aluminum and composite versions. The insert of these connectors can be easily installed and removed from the shell. The EPX shell can accommodate a wide variety of inserts for signal, power, coax, data bus, fiber-optic, and high-frequency BMA contacts. The EPX rectangular modular connectors provide an excellent trade-off between the number of available contacts and the space used. These connectors meet the most stringent requirements of the OEM and are ideal for various applications including disconnect panel.
