CLP-102-02-L-D-BE-TR

Name: Samtec CLP-102-02-L-D-BE-TR
Brand: Samtec
SKU: 200-CLP10202LDBETR
Price: 1.07 EUR
Availability: InStock

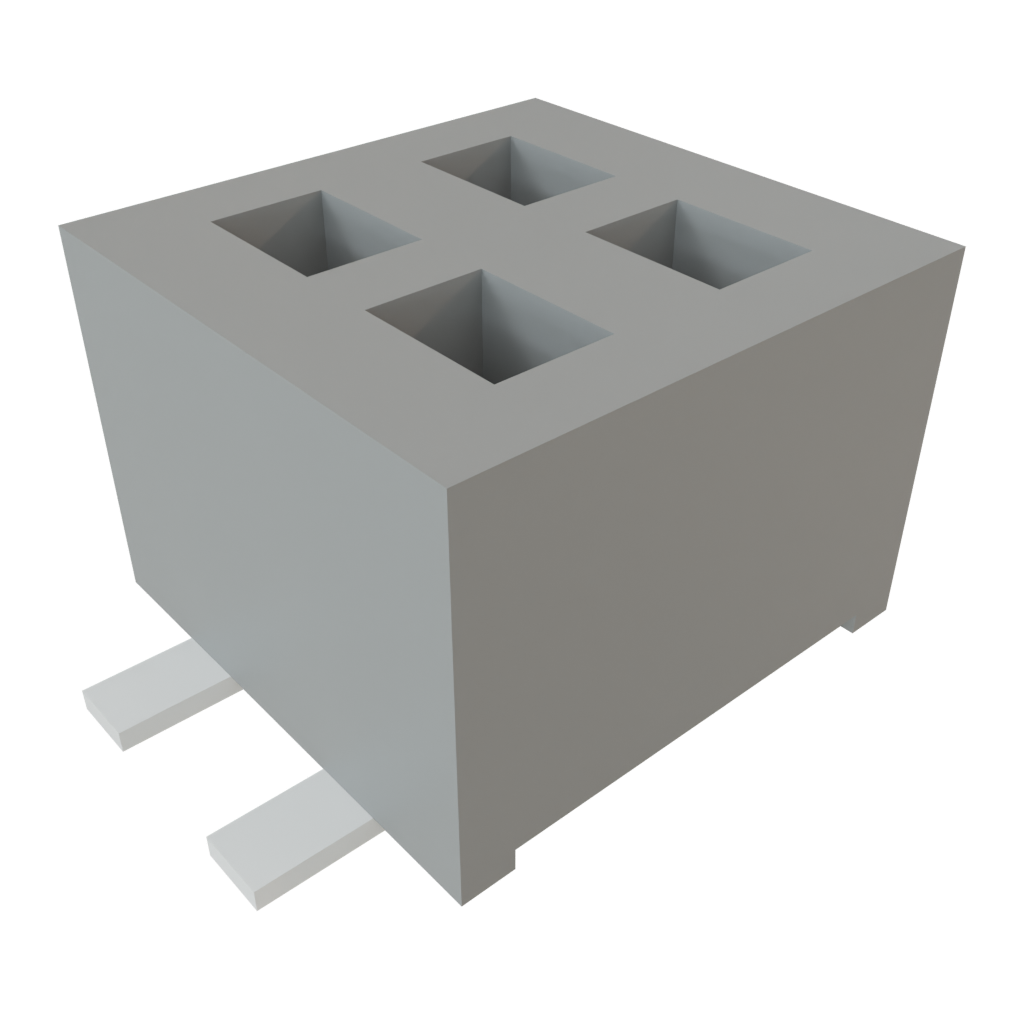

Images are for reference only
See Product Specifications

Mouser No:

200-CLP10202LDBETR

Mfr. No:

CLP-102-02-L-D-BE-TR

Mfr.:

Samtec

Description:

Headers & Wire Housings 1.27MM LOW PRO DUAL WIPE SKT

Datasheet:

CLP-102-02-L-D-BE-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec CLP-102-02-L-D-BE-TR

In Stock: 1.521

Stock:: 1.521 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,07 €	1,07 €
	0,912 €	91,20 €
	0,777 €	388,50 €
	0,709 €	709,00 €
Full Reel (Order in multiples of 1725)
	0,654 €	1.128,15 €
	0,637 €	2.197,65 €

Alternative Packaging

Mfr. Part No.:

CLP-102-02-L-D-BE

Packaging:

Bubble Pack

Availability:

In Stock

Price:

1,25 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Sockets
Type:	Socket
Number of Positions:	4 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Gender:	Socket (Female)
Contact Plating:	Gold
Series:	CLP
Tradename:	Tiger Claw
Application:	Board-to-Board
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Current Rating:	3.4 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Insulation Resistance:	5 GOhms
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1725
Subcategory:	Headers & Wire Housings
Voltage Rating:	280 VAC, 395 VDC
Unit Weight:	481,510 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Tiger Claw™ CLM, CLP & CLT Dual Wipe Socket Strips

Samtec Tiger Claw™ Dual Wipe Socket Strips are available in 1.00mm, 1.27mm, and 2.00mm pitches and feature a low-profile Tiger Claw contact system. These rugged sockets are insulated with black liquid crystal polymer and withstand 100 mating cycles. Samtec Tiger Claw socket strips have a -55°C to +125°C operating temperature and are RoHS compliant.
