DW-01-11-T-S-700

Name: Samtec DW-01-11-T-S-700
Brand: Samtec
SKU: 200-DW0111TS700
Price: 0.12 EUR
Availability: InStock

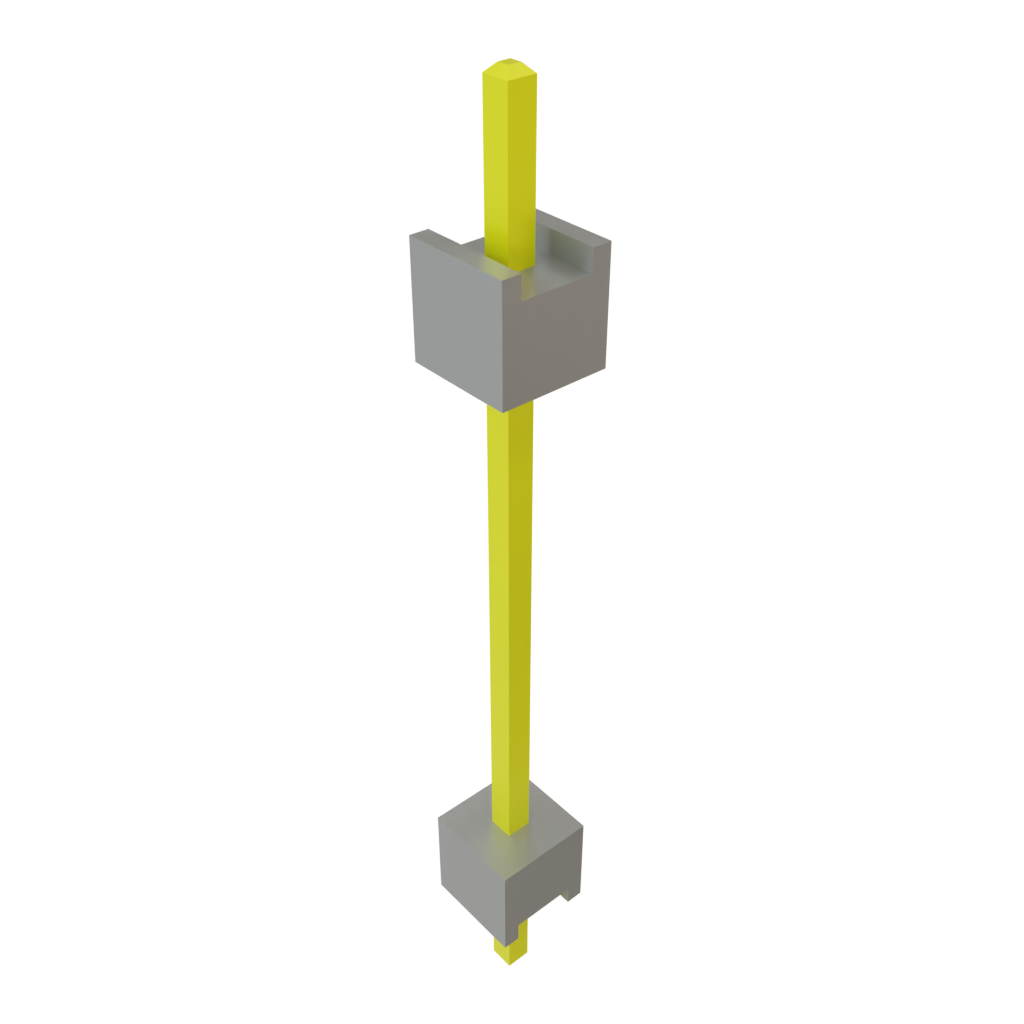

Images are for reference only
See Product Specifications

Mouser No:

200-DW0111TS700

Mfr. No:

DW-01-11-T-S-700

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors Flexible Board Stacking Header with Fixed Tail Length

Datasheet:

DW-01-11-T-S-700 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 2.250

Stock:: 2.250 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,12 €	0,12 €
	0,115 €	5,75 €
	0,078 €	7,80 €
	0,065 €	32,50 €
	0,057 €	57,00 €
	0,052 €	104,00 €
	0,041 €	205,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	1 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	1 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	0.7 in
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Contact Plating:	Tin
Contact Material:	Phosphor Bronze
Housing Material:	Polyester
Series:	DW
Packaging:	Bulk
Application:	Board-to-Board, Cable
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Flammability Rating:	UL 94 V-0
Mounting Style:	Throuh Hole
Factory Pack Quantity:	1
Termination Post Length:	2.79 mm
Tradename:	Flex Stack

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
