ERM5-050-02.0-L-DV-TR

Name: Samtec ERM5-050-02.0-L-DV-TR
Brand: Samtec
SKU: 200-ERM505002.0LDVTR
Price: 4.79 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-ERM505002.0LDVTR

Mfr. No:

ERM5-050-02.0-L-DV-TR

Mfr.:

Samtec

Description:

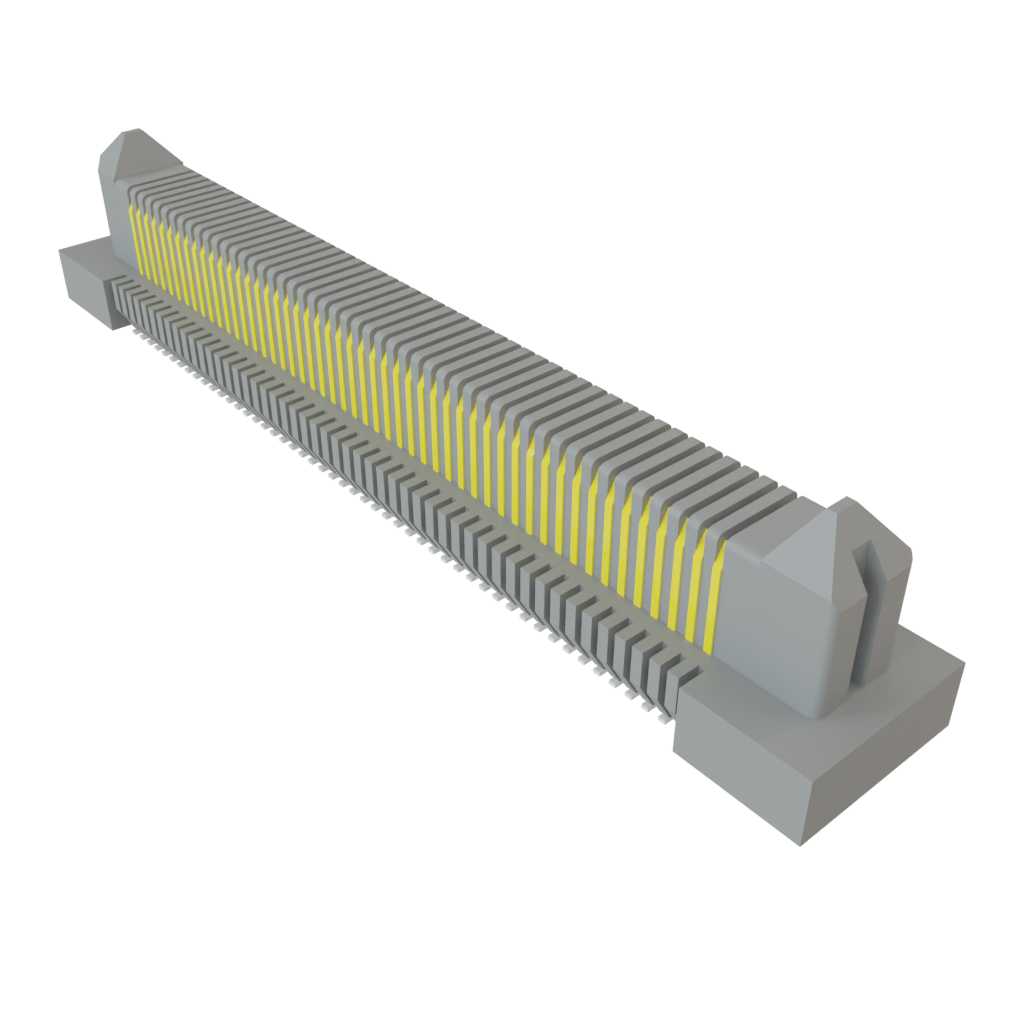

Board to Board & Mezzanine Connectors 0.50 mm Edge Rate Rugged High Speed Terminal

Datasheet:

ERM5-050-02.0-L-DV-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec ERM5-050-02.0-L-DV-TR

In Stock: 608

Stock:: 608

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 500
Factory Lead Time:: 1

Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	4,79 €	4,79 €
	4,71 €	47,10 €
	4,45 €	111,25 €
	4,25 €	212,50 €
	4,00 €	400,00 €
	3,86 €	965,00 €
Full Reel (Order in multiples of 500)
	3,55 €	1.775,00 €
	3,28 €	3.280,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	100 Position
Pitch:	0.5 mm (0.02 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	7 mm, 9 mm
Maximum Data Rate:	56 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	ERM5
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Flammability Rating:	UL 94 V-0
Mounting Style:	Mounting Peg
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	500
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Edge Rate

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Edge Rate® High-Speed Rugged High-Cycle Connectors

Samtec Edge Rate® High-speed Rugged High-Cycle Connectors are optimized for signal integrity performance. These connectors feature a smooth milled contact surface for mating instead of stamped contact that mates on a cut edge. This mating surface reduces the wear tracks on the contact and increases the durability and cycle life of the contact system. Samtec Edge Rate High-speed Rugged High-Cycle Connectors offer low insertion and withdrawal forces and allow the connectors to be zippered when unmating.
