ERM5-070-05.0-L-DV-K-TR

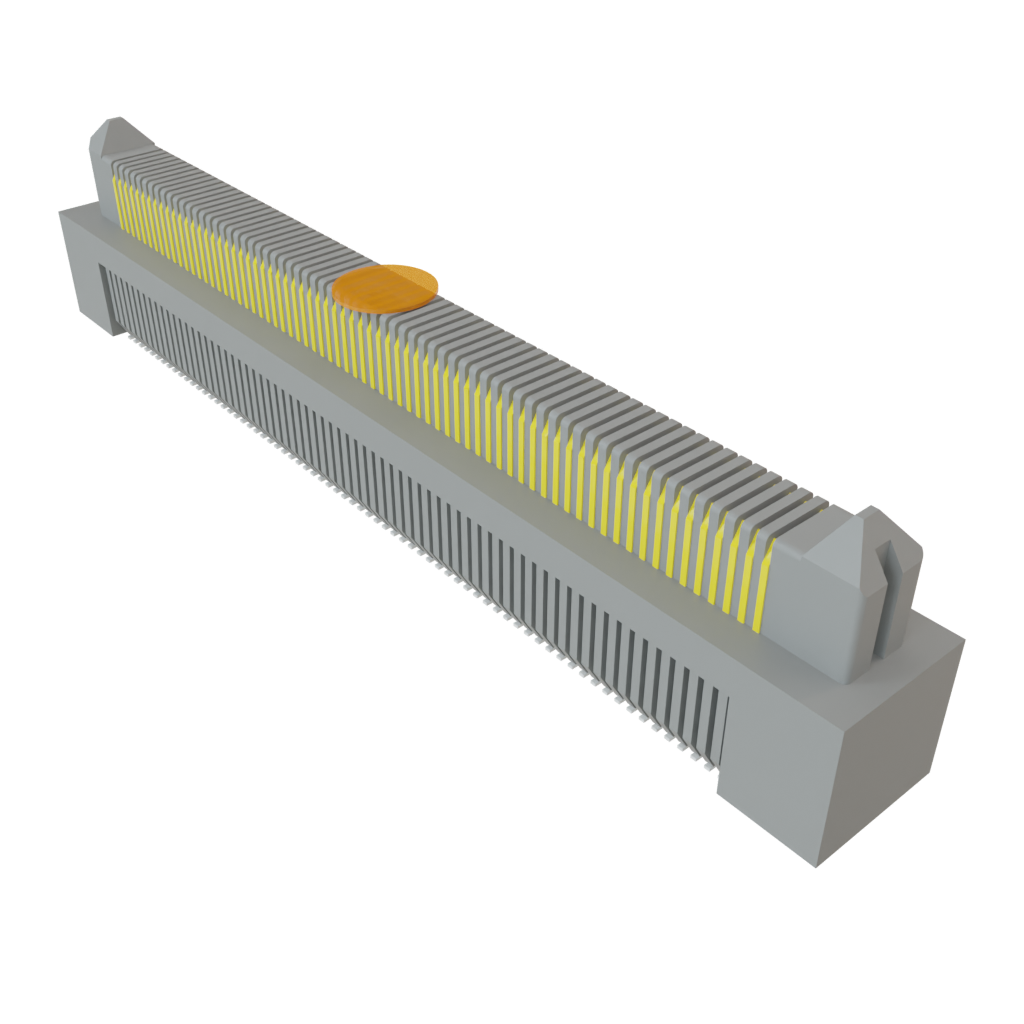

Name: Samtec ERM5-070-05.0-L-DV-K-TR
Brand: Samtec
SKU: 200-ERM5070050LDVKTR
Price: 5.33 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-ERM5070050LDVKTR

Mfr. No:

ERM5-070-05.0-L-DV-K-TR

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.50 mm Edge Rate Rugged High Speed Terminal

Datasheet:

ERM5-070-05.0-L-DV-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec ERM5-070-05.0-L-DV-K-TR

In Stock: 668

Stock:: 668 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 11 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,33 €	5,33 €
	5,12 €	51,20 €
	4,88 €	244,00 €
	4,58 €	458,00 €
Full Reel (Order in multiples of 250)
	4,01 €	1.002,50 €
	3,84 €	1.920,00 €
	3,81 €	3.810,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	140 Position
Pitch:	0.5 mm (0.02 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	10 mm, 12 mm
Maximum Data Rate:	56 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	ERM5
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Flammability Rating:	UL 94 V-0
Mounting Style:	Mounting Peg
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	250
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Edge Rate
Unit Weight:	3,136 g
