GPPB-PS-1-06-EG-ST-SM-1N

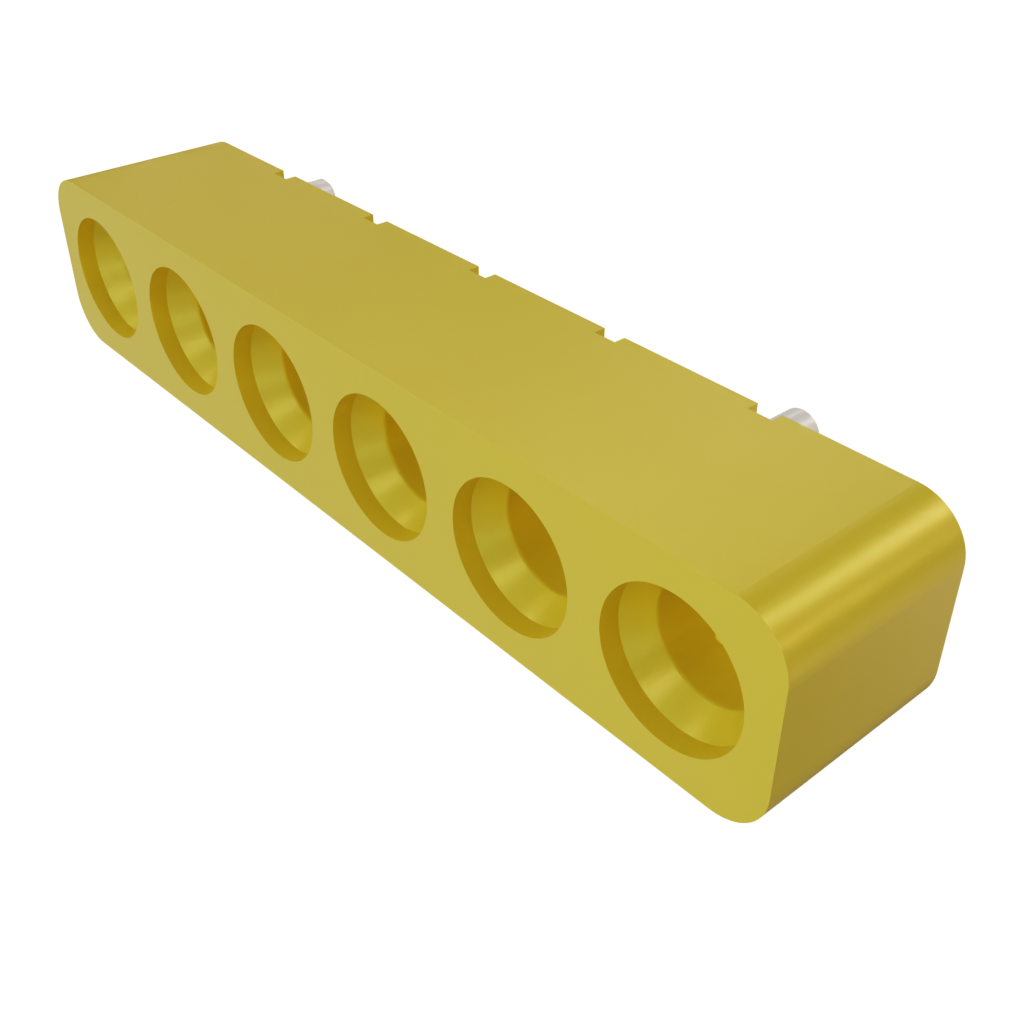

Name: Samtec GPPB-PS-1-06-EG-ST-SM-1N
Brand: Samtec
SKU: 200-GPPBPS16EGSTSM1N
Price: 126.33 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

200-GPPBPS16EGSTSM1N

Mfr. No:

GPPB-PS-1-06-EG-ST-SM-1N

Mfr.:

Samtec

Description:

RF Connectors / Coaxial Connectors Magnum RF Ganged, Multi-Position SMPM Block

Datasheet:

GPPB-PS-1-06-EG-ST-SM-1N Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec GPPB-PS-1-06-EG-ST-SM-1N

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	126,33 €	126,33 €
	120,31 €	1.203,10 €
	114,58 €	2.864,50 €
	109,13 €	5.456,50 €
234	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	RF Connectors / Coaxial Connectors
Product:	Connectors
RF Series:	SMPM
Gender:	Plug (Pin)
Impedance:	50 Ohms
Maximum Frequency:	55 GHz
Termination Style:	Solder
Orientation:	Straight
Mounting Style:	Board Mount
Body Finish:	Gold
Body Material:	Brass
Brand:	Samtec
Contact Material:	Copper
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Product Type:	RF Connectors / Coaxial Connectors
Series:	GPPB
Factory Pack Quantity:	78
Subcategory:	RF Interconnects
Tradename:	Magnum RF

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

TARIC:: 8536691000
USHTS:: 8536694010
ECCN:: EAR99

GPPB Magnum RF™ Ganged Connectors

Samtec GPPB Magnum RF™ Ganged Connectors are designed with high-density, space-saving, and a 3.56mm (0.140") pitch. These connectors are single row, surface mount with swept contact connectors with SM option. The GPPB Magnum RF™ ganged connectors come with a push-on interface with varying retention forces. These connectors feature board-to-board applications like mezzanine or perpendicular, single row, and bullet adaptors allowing for axial and radial misalignment and blind mate.

Magnum RF™ Connectors / Cable Assemblies

Samtec Magnum RF™ Connectors / Cable Assemblies are ganged, multi-position RF blocks and cable assemblies for millimeter-wave applications. These products are ideal when limited space and a high operating frequency are required. The ganged SMPM connectors operate mode-free up to 65GHz frequency. These connectors feature a micro-miniature SMPM style that enables small bundle sizes for weight savings and increased airflow for cooling.
