HSEC8-1100-03-S-DV-A-K

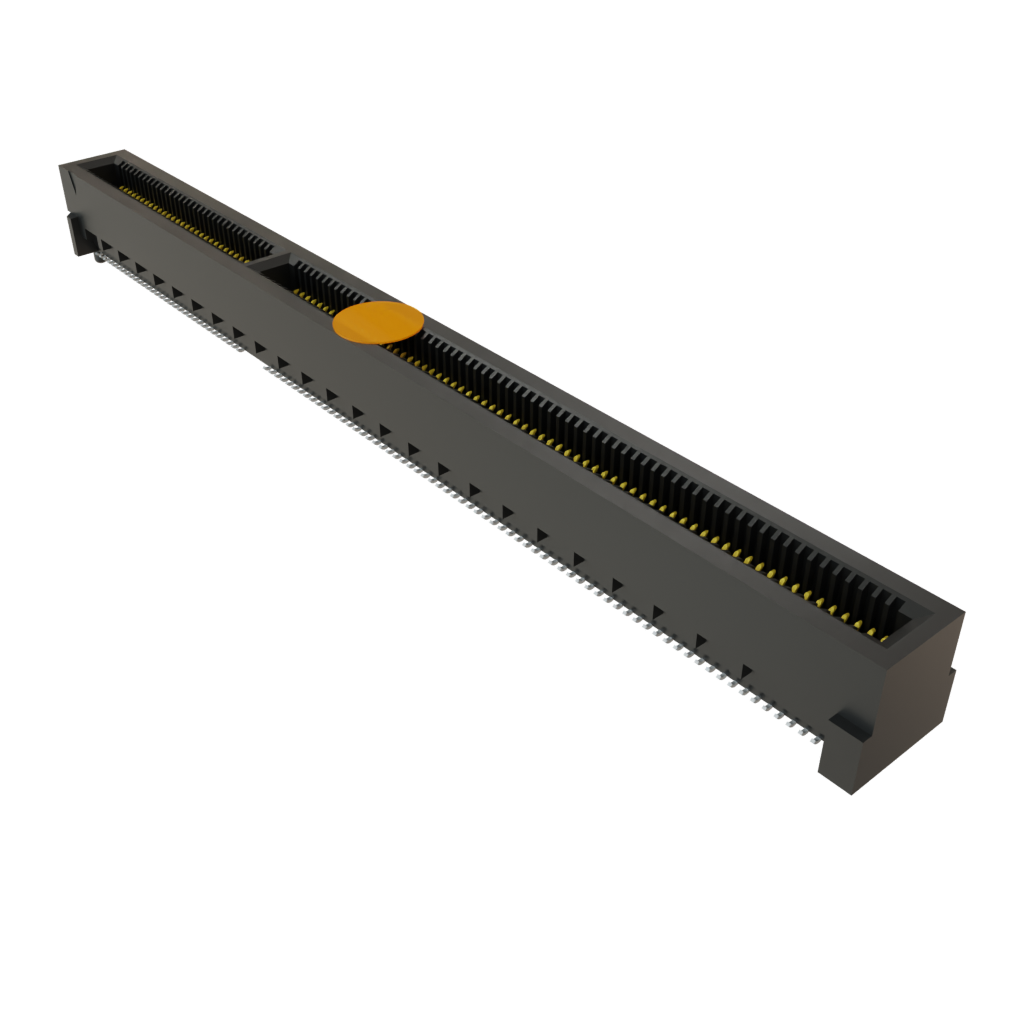

Name: Samtec HSEC8-1100-03-S-DV-A-K
Brand: Samtec
SKU: 200-HSEC8110003SDVAK
Price: 9.25 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-HSEC8110003SDVAK

Mfr. No:

HSEC8-1100-03-S-DV-A-K

Mfr.:

Samtec

Description:

Standard Card Edge Connectors 0.80 mm High-Speed Power/Signal Combo Edge Card Connector

Datasheet:

HSEC8-1100-03-S-DV-A-K Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec HSEC8-1100-03-S-DV-A-K

In Stock: 35

Stock:: 35 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	9,25 €	9,25 €
	8,56 €	85,60 €
	8,08 €	210,08 €
	7,90 €	410,80 €
	7,19 €	747,76 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Standard Card Edge Connectors
RoHS:
Product:	Sockets
Number of Positions:	200 Position
Pitch:	0.8 mm
Board Thickness:	2.36 mm
Mounting Style:	SMD/SMT
Mounting Angle:	Vertical
Contact Plating:	Gold
Series:	HSEC8
Brand:	Samtec
Contact Material:	Beryllium Copper
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Current Rating:	2.8 A
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Number of Rows:	2 Row
Packaging:	Tray
Product Type:	Standard Card Edge Connectors
Factory Pack Quantity:	26
Subcategory:	Card Edge Connectors
Termination Style:	SMD/SMT
Tradename:	Edge Rate
Voltage Rating:	240 VAC
