HSEC8-130-01-L-PV-2-1

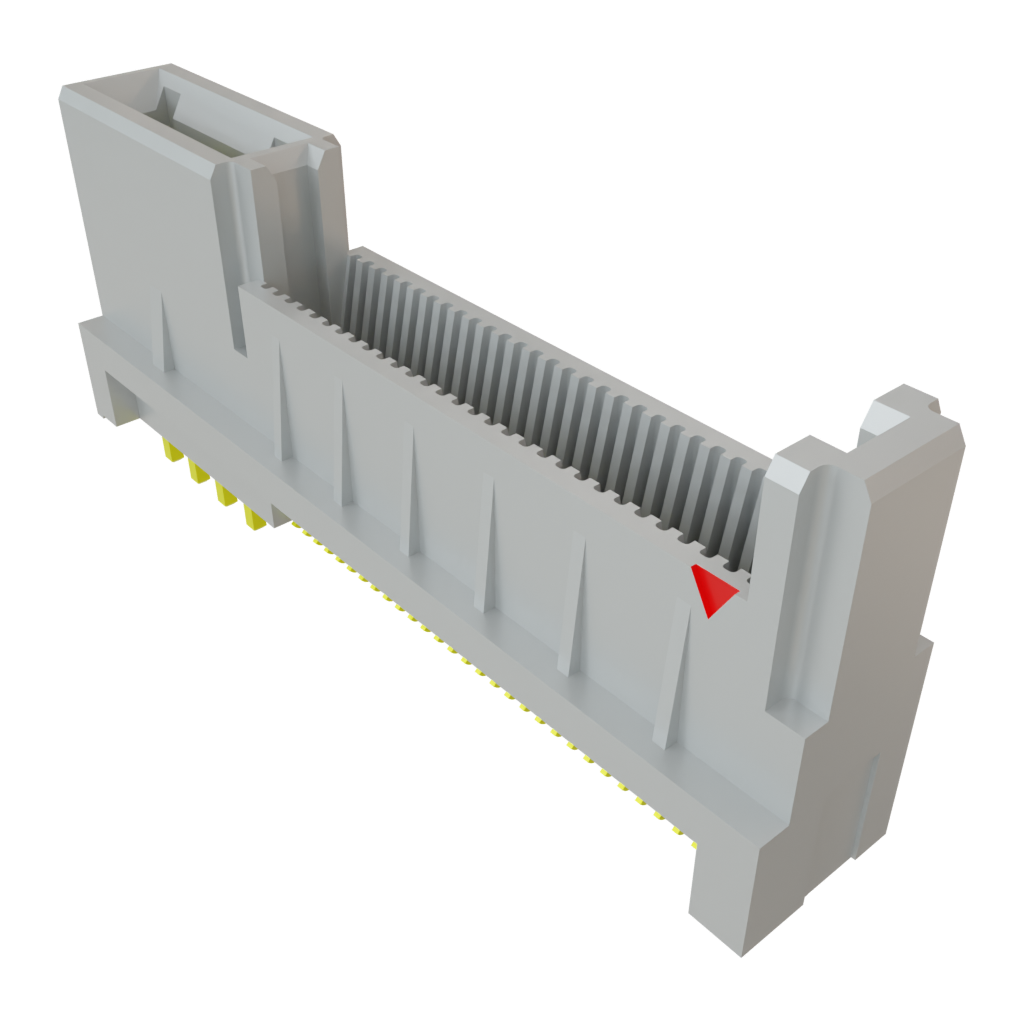

Name: Samtec HSEC8-130-01-L-PV-2-1
Brand: Samtec
SKU: 200-HSEC813001LPV21
Price: 8.04 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-HSEC813001LPV21

Mfr. No:

HSEC8-130-01-L-PV-2-1

Mfr.:

Samtec

Description:

Standard Card Edge Connectors 0.80 mm High-Speed Power/Signal Combo Edge Card Connector

Datasheet:

HSEC8-130-01-L-PV-2-1 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec HSEC8-130-01-L-PV-2-1

In Stock: 70

Stock:: 70 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 15 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	8,04 €	8,04 €
	7,43 €	74,30 €
	7,03 €	175,75 €
	6,78 €	339,00 €
	6,25 €	437,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Standard Card Edge Connectors
RoHS:
Product:	Headers
Number of Positions:	32 Position
Mounting Style:	Mounting Peg
Mounting Angle:	Straight
Contact Plating:	Gold
Series:	HSEC8
Brand:	Samtec
Contact Arrangement:	Power, Signal
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Current Rating:	3.2 A, 27.5 A
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Number of Rows:	2 Row
Packaging:	Tray
Product Type:	Standard Card Edge Connectors
Factory Pack Quantity:	70
Subcategory:	Card Edge Connectors
Tradename:	Edge Rate
Unit Weight:	1 g
