IPL1-110-02-L-S-K-TR

Name: Samtec IPL1-110-02-L-S-K-TR
Brand: Samtec
SKU: 200-IPL111002LSKTR
Price: 2.55 EUR
Availability: InStock

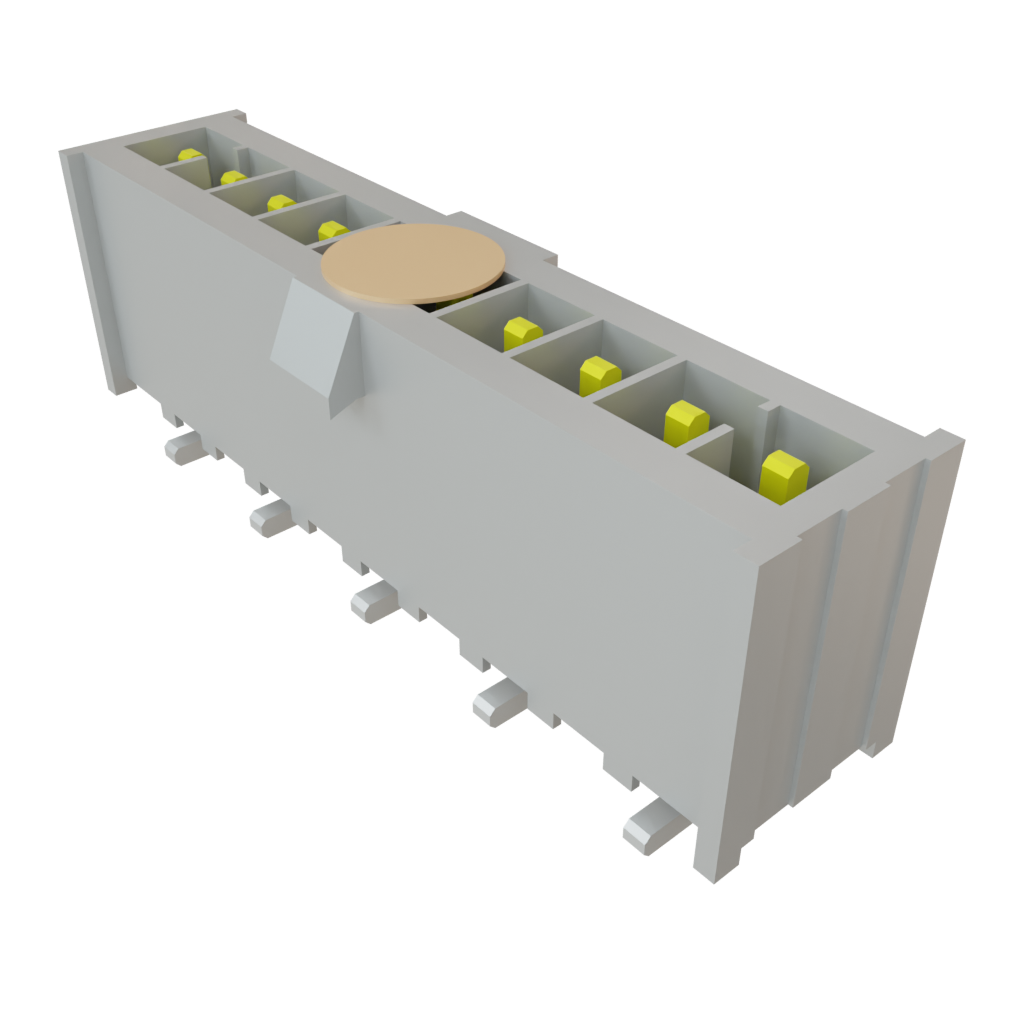

Images are for reference only
See Product Specifications

Mouser No:

200-IPL111002LSKTR

Mfr. No:

IPL1-110-02-L-S-K-TR

Mfr.:

Samtec

Description:

Headers & Wire Housings .100 Mini Mate Isolated Power Terminal Header

Datasheet:

IPL1-110-02-L-S-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec IPL1-110-02-L-S-K-TR

In Stock: 299

Stock:: 299 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,55 €	2,55 €
	2,41 €	60,25 €
	2,22 €	111,00 €
Full Reel (Order in multiples of 300)
	1,82 €	546,00 €
	1,66 €	1.494,00 €

Alternative Packaging

Mfr. Part No.:

IPL1-110-02-L-S-K

Packaging:

Tube

Availability:

In Stock

Price:

2,98 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Discrete Wire
Number of Positions:	10 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	1 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Gold
Series:	IPL1
Tradename:	Mini Mate
Application:	Wire-to-Board
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Current Rating:	2.1 A to 4.8 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Natural
Housing Material:	Liquid Crystal Polymer (LCP)
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	300
Subcategory:	Headers & Wire Housings
Voltage Rating:	675 VAC, 954 VDC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

IPL1-110-02-L-S-K-TR Datasheet (PDF)

Images


Specification Sheets

Technical Resources

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Mini Mate .100" (2.54mm) Discrete Wire Solutions

Samtec Mini Mate .100" (2.54mm) Discrete Wire Solutions include a variety of housings and contacts to meet a broad range of design needs with current ratings of up to 3.3A. The discrete wire connectors from Samtec are available in cable-to-board, cable-to-cable, and cable-to-panel options. Rugged individually shrouded contacts provide reliability in harsh environments. The fully polarized single- and double-row systems of up to 50 pins also include metal or plastic latch options.
