IPS1-115-01-L-D-VS-K-TR

Name: Samtec IPS1-115-01-L-D-VS-K-TR
Brand: Samtec
SKU: 200-IPS111501LDVSKTR
Price: 3.33 EUR
Availability: OutOfStock

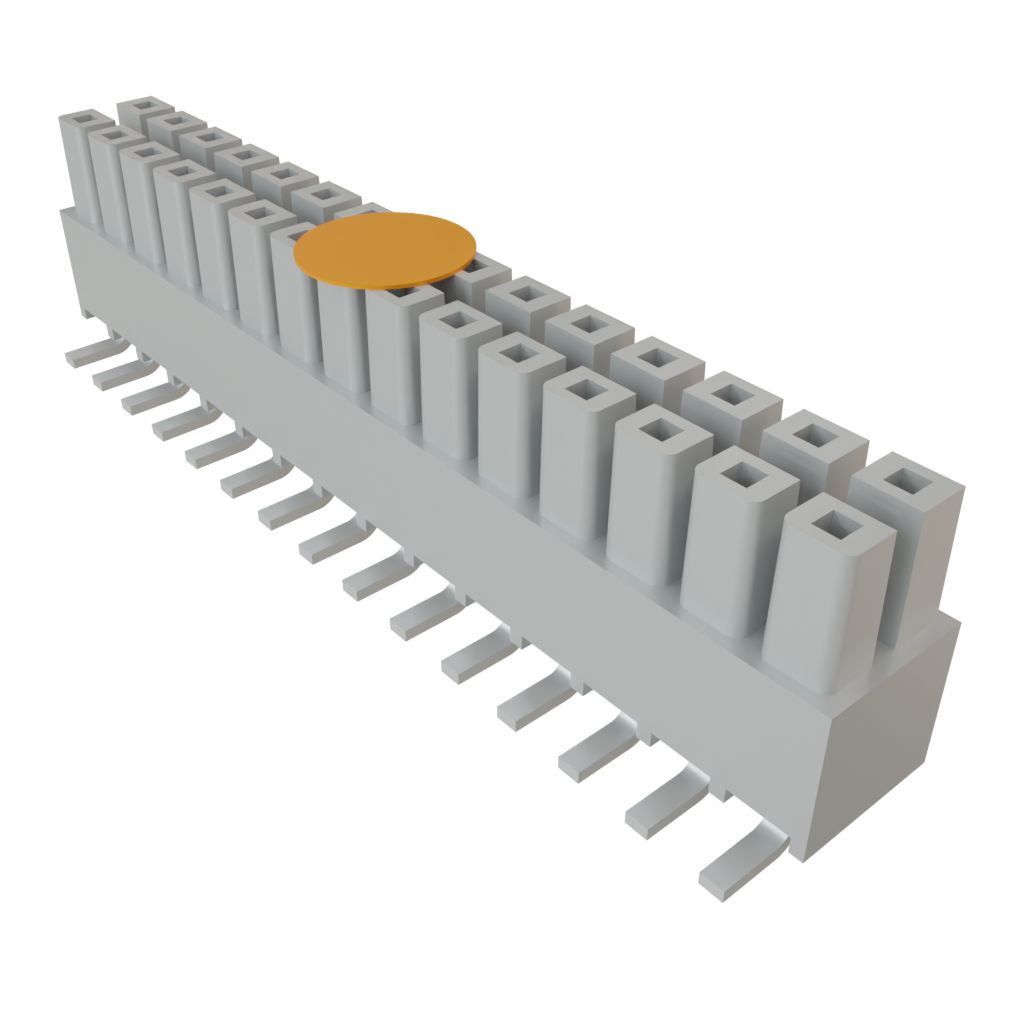

Images are for reference only
See Product Specifications

Mouser No:

200-IPS111501LDVSKTR

Mfr. No:

IPS1-115-01-L-D-VS-K-TR

Mfr.:

Samtec

Description:

Power to the Board .100 Mini Mate Isolated Power Connector Socket Strip

Datasheet:

IPS1-115-01-L-D-VS-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec IPS1-115-01-L-D-VS-K-TR

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 2 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,33 €	3,33 €
	3,16 €	79,00 €
	3,02 €	151,00 €
	2,84 €	284,00 €
Full Reel (Order in multiples of 150)
	2,84 €	426,00 €
	2,62 €	2.358,00 €
	2,61 €	6.264,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Power to the Board
RoHS:
Product Type:	Power to the Board
Contact Gender:	Socket (Female)
Current Rating:	5.9 A
Voltage Rating:	775 VAC, 1.095 kVDC
Number of Positions:	30 Position
Mounting Style:	SMD/SMT
Termination Style:	Solder Pin
Pitch:	2.54 mm
Series:	IPS1
Packaging:	Reel
Packaging:	Cut Tape
Tradename:	Mini Mate
Brand:	Samtec
Contact Material:	Phosphor Bronze
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Straight
Number of Rows:	2 Row
Factory Pack Quantity:	150
Subcategory:	Power Connectors

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

IPS1-115-01-L-D-VS-K-TR Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Test Report (PDF)

USHTS:: 8536694040
ECCN:: EAR99

Mini Mate® Isolated Power Connectors

Samtec Mini Mate® Isolated Power Connectors are 2.54mm pitch (.100") board-to-board power socket and terminal strips with individually shrouded contacts. The shrouded contacts provide electrical and mechanical protection. An optional locking clip also boosts the ruggedness of the connectors. Samtec Mini Mate double-row connectors come in vertical through-hole, surface-mount, or right-angle through-hole configurations. These power connectors also offer a current rating of 4.8A at 95°C.
