LSHM-150-06.0-F-DV-A-S-K-TR

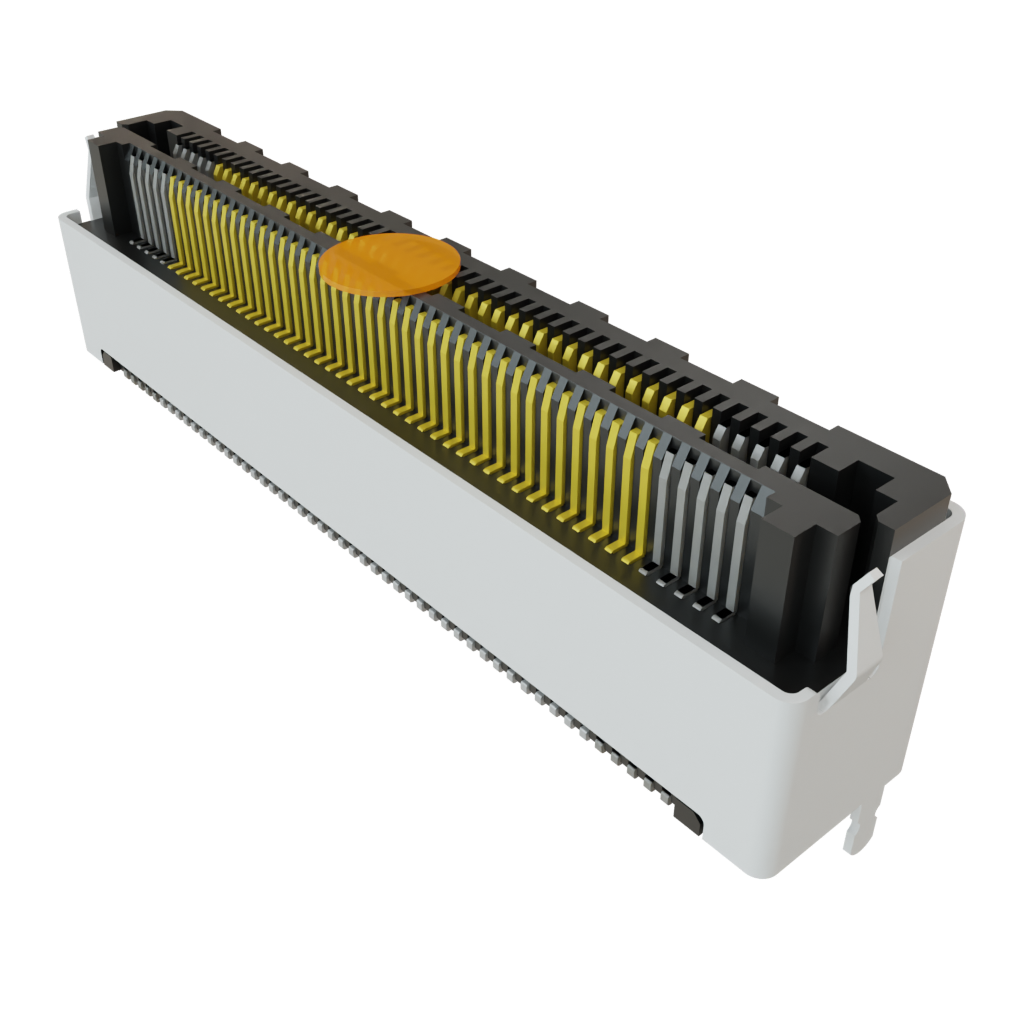

Name: Samtec LSHM-150-06.0-F-DV-A-S-K-TR
Brand: Samtec
SKU: 200-LSHM15006FDVASK
Price: 7.58 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-LSHM15006FDVASK

Mfr. No:

LSHM-150-06.0-F-DV-A-S-K-TR

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.50 mm Razor Beam High-Speed Hermaphroditic Terminal/Socket Strip

Datasheet:

LSHM-150-06.0-F-DV-A-S-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec LSHM-150-06.0-F-DV-A-S-K-TR

In Stock: 331

Stock:: 331 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 275)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	7,58 €	7,58 €
	7,22 €	180,50 €
	6,79 €	339,50 €
	6,40 €	640,00 €
Full Reel (Order in multiples of 275)
	5,19 €	1.427,25 €
	5,03 €	2.766,50 €
2.475	Quote

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Connectors
Number of Positions:	100 Position
Pitch:	0.5 mm (0.02 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Current Rating:	2 A
Voltage Rating:	160 VAC
Maximum Data Rate:	16 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	LSHM
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Data Rate:	16 Gbps
Flammability Rating:	UL 94 V-0
Mounting Style:	Board Lock
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	275
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Razor Beam
Unit Weight:	3,576 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Razor Beam™ LSHM High-Speed Connectors

Samtec Razor Beam™ LSHM High-Speed Connectors feature a self-mating system to help reduce inventory costs. These high-density shrouded connectors offer up to 100 I/Os and mating / unmating forces approximately 4x to 6x greater than typical micro-pitch connectors. Other features include a slim row-to-row design for high-speed and fine-pitch systems. Samtec Razor Beam LSHM High-Speed Connectors are available in 10 stack height options from 5mm to 12mm, with shielded options also available.
