MMT-102-01-T-SH

Name: Samtec MMT-102-01-T-SH
Brand: Samtec
SKU: 200-MMT10201TSH
Price: 0.35 EUR
Availability: InStock

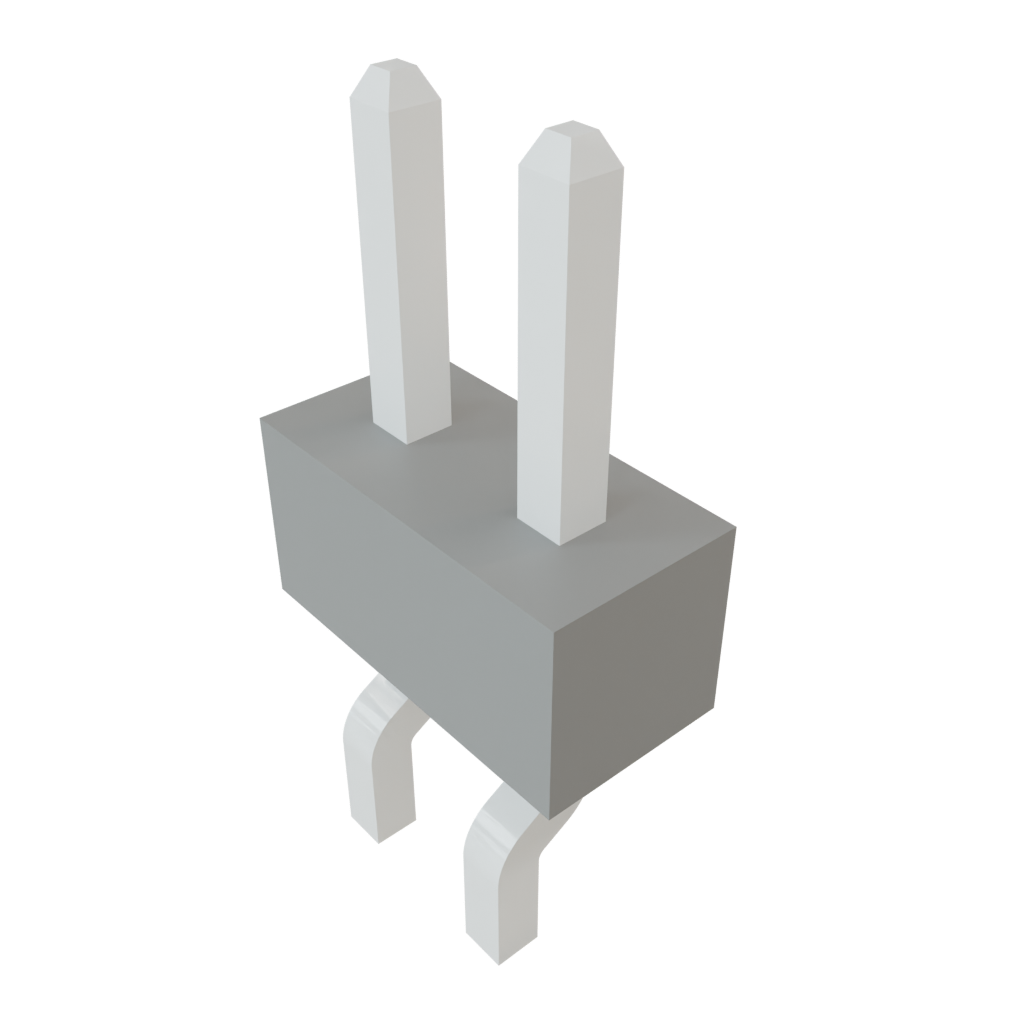

Images are for reference only
See Product Specifications

Mouser No:

200-MMT10201TSH

Mfr. No:

MMT-102-01-T-SH

Mfr.:

Samtec

Description:

Headers & Wire Housings 2.00 mm Horizontal Surface Mount Terminal Strip

Datasheet:

MMT-102-01-T-SH Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 3.008

Stock:: 3.008 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,353 €	0,35 €
	0,292 €	14,60 €
	0,249 €	24,90 €
	0,206 €	103,00 €
	0,181 €	181,00 €
Full Reel (Order in multiples of 2000)
	0,163 €	326,00 €
	0,156 €	1.560,00 €

Alternative Packaging

Mfr. Part No.:

MMT-102-01-T-SH-TR

Packaging:

Reel, Cut Tape

Availability:

In Stock

Price:

0,45 €

Min:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Pin Strip
Number of Positions:	2 Position
Pitch:	2 mm (0.079 in)
Number of Rows:	1 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Right Angle
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	MMT
Application:	Board-to-Board, Cable
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	2000
Subcategory:	Headers & Wire Housings
Unit Weight:	22,300 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Dimensional Drawing, Footprint, and Part Number Configuration

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99
