QTE-040-01-L-D-A-L

Name: Samtec QTE-040-01-L-D-A-L
Brand: Samtec
SKU: 200-QTE04001LDAL
Price: 7.76 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-QTE04001LDAL

Mfr. No:

QTE-040-01-L-D-A-L

Mfr.:

Samtec

Description:

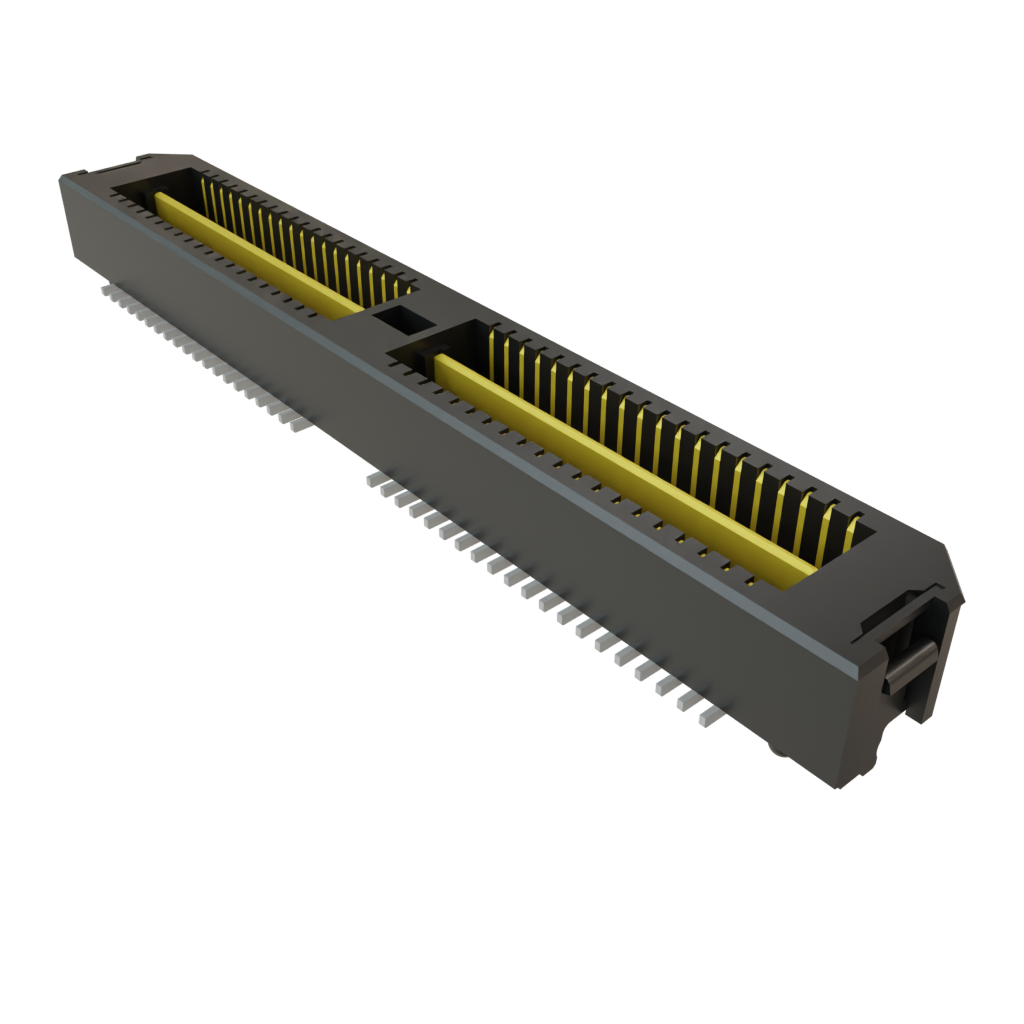

Board to Board & Mezzanine Connectors Q Strip High-Speed Ground Plane Header

Datasheet:

QTE-040-01-L-D-A-L Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec QTE-040-01-L-D-A-L

In Stock: 79

Stock:: 79 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	7,76 €	7,76 €
	7,35 €	73,50 €
	7,03 €	175,75 €
	6,61 €	370,16 €
	6,11 €	684,32 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	80 Position
Pitch:	0.8 mm (0.031 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	5 mm
Current Rating:	2 A
Voltage Rating:	225 VAC
Maximum Data Rate:	28 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	QTE
Packaging:	Tray
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Data Rate:	28 Gbps
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	56
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Q Strip
Unit Weight:	760 mg
