SEAF-30-05.0-S-08-1-A-K-TR

Name: Samtec SEAF-30-05.0-S-08-1-A-K-TR
Brand: Samtec
SKU: 200-SEAF3005.0S081AK
Price: 17.51 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SEAF3005.0S081AK

Mfr. No:

SEAF-30-05.0-S-08-1-A-K-TR

Mfr.:

Samtec

Description:

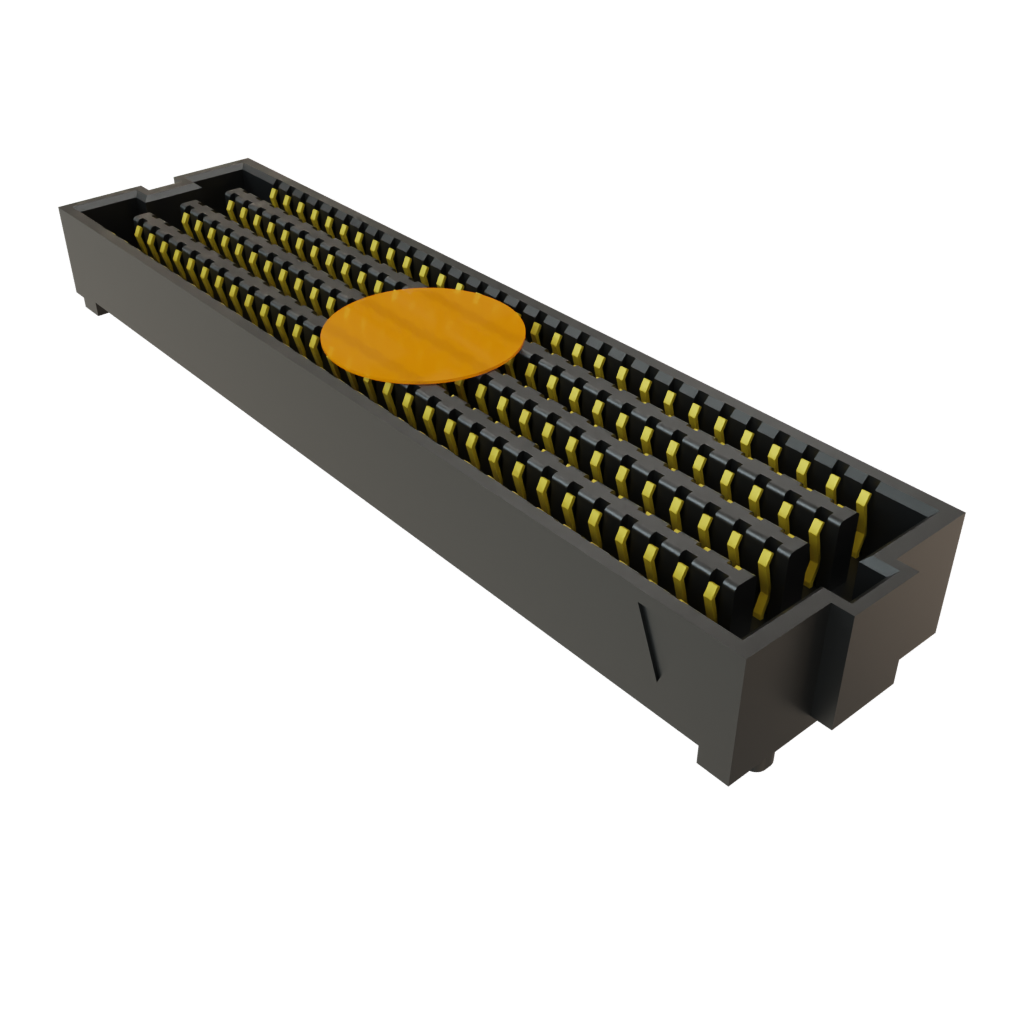

Board to Board & Mezzanine Connectors 1.27MM SEARAY HS HD ARRAY SKT

Datasheet:

SEAF-30-05.0-S-08-1-A-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SEAF-30-05.0-S-08-1-A-K-TR

In Stock: 86

Stock:: 86 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	17,51 €	17,51 €
	16,74 €	167,40 €
	16,12 €	403,00 €
	14,94 €	747,00 €
	12,83 €	1.283,00 €
Full Reel (Order in multiples of 250)
	10,92 €	2.730,00 €
	10,65 €	5.325,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	240 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	8 Row
Termination Style:	Solder
Mounting Angle:	Straight
Stack Height:	7 mm
Current Rating:	2.7 A
Voltage Rating:	240 VAC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SEAF
Packaging:	Reel
Packaging:	Cut Tape
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	250
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	SEARAY
