SEAM-30-09.0-S-08-2-A-K-TR

Name: Samtec SEAM-30-09.0-S-08-2-A-K-TR
Brand: Samtec
SKU: 200-SEAM3009.0S082AK
Price: 27.31 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-SEAM3009.0S082AK

Mfr. No:

SEAM-30-09.0-S-08-2-A-K-TR

Mfr.:

Samtec

Description:

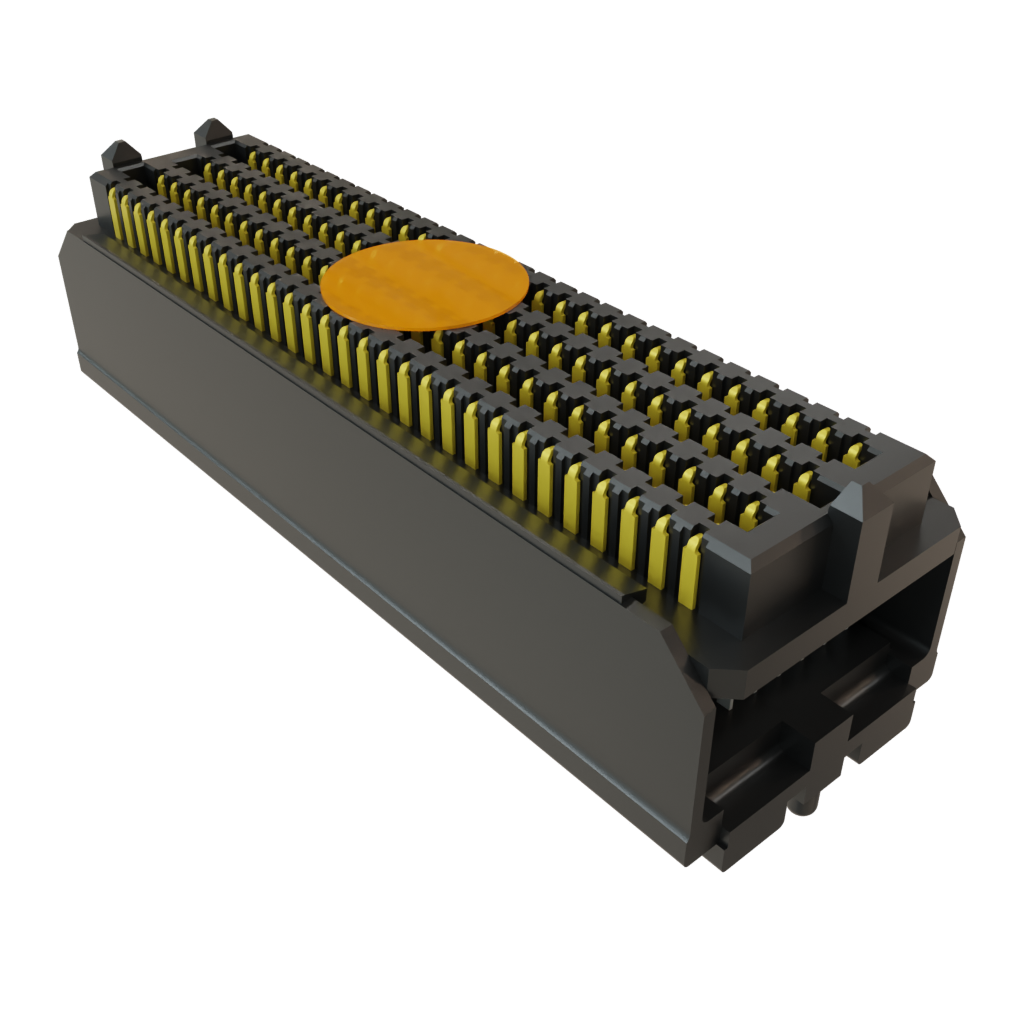

Board to Board & Mezzanine Connectors .050 SEARAY High-Speed High-Density Open-Pin-Field Array Terminal

Datasheet:

SEAM-30-09.0-S-08-2-A-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SEAM-30-09.0-S-08-2-A-K-TR

Availability

Stock:: An unexpected error occurred. Please try again later.

561 Can Dispatch in 10 Days

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	27,31 €	27,31 €
	26,11 €	261,10 €
	25,13 €	628,25 €
	23,29 €	1.164,50 €
	21,49 €	2.149,00 €
Full Reel (Order in multiples of 75)
	23,29 €	1.746,75 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	240 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	8 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	14 mm, 15 mm, 15.5 mm, 16.5 mm
Current Rating:	2.7 A
Voltage Rating:	240 VAC
Maximum Data Rate:	56 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SEAM
Packaging:	Reel
Packaging:	Cut Tape
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Data Rate:	56 Gbps
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	75
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	SEARAY
Unit Weight:	1,412 g
