SFMC-130-02-L-D

Name: Samtec SFMC-130-02-L-D
Brand: Samtec
SKU: 200-SFMC13002LD
Price: 8.5 EUR
Availability: OutOfStock

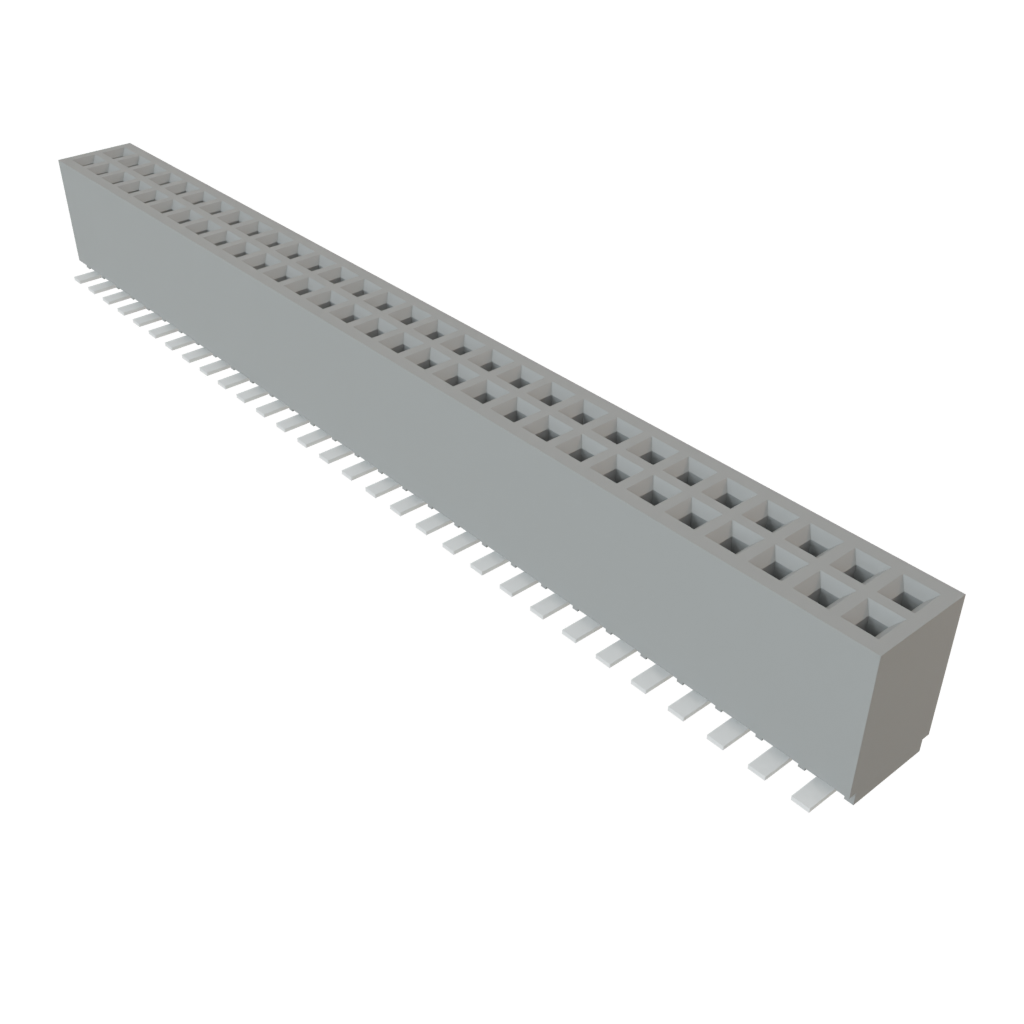

Images are for reference only
See Product Specifications

Mouser No:

200-SFMC13002LD

Mfr. No:

SFMC-130-02-L-D

Mfr.:

Samtec

Description:

Headers & Wire Housings .050 Tiger Eye High-Reliability Flexible Pin Count Socket Strip

Datasheet:

SFMC-130-02-L-D Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SFMC-130-02-L-D

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	8,50 €	8,50 €
	7,07 €	70,70 €
	6,59 €	197,70 €
	6,25 €	375,00 €
	5,77 €	605,85 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Sockets
Type:	Socket
Number of Positions:	60 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	2 Row
Mounting Style:	SMD/SMT
Termination Style:	Solder
Mounting Angle:	Straight
Contact Plating:	Gold
Series:	SFMC
Tradename:	Tiger Eye
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Tube
Brand:	Samtec
Contact Material:	Beryllium Copper
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Current Rating:	2.9 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Socket
Housing Material:	Liquid Crystal Polymer (LCP)
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	15
Subcategory:	Headers & Wire Housings
Voltage Rating:	220 VAC, 310 VDC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

USHTS:: 8536694040
ECCN:: EAR99

Tiger Eye™ SFM .050" (1.27mm) Pitch Sockets

Samtec Tiger Eye™ SFM .050" (1.27mm) Pitch Socket Strips are designed for micro rugged, high-reliability, high-cycle applications. The Tiger Eye contains multi-finger, heat-treated, Beryllium Copper (BeCu) contacts designed for rugged environments. These Samtec connectors are available in vertical, right-angle, and horizontal orientations and through-hole or surface-mount termination. Optional alignment pin, locking clip, dual screw-down, or weld tab is available for design flexibility.
