ST5-80-1.50-L-D-P-TR

Name: Samtec ST5-80-1.50-L-D-P-TR
Brand: Samtec
SKU: 200-ST5801.50LDPTR
Price: 6.49 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-ST5801.50LDPTR

Mfr. No:

ST5-80-1.50-L-D-P-TR

Mfr.:

Samtec

Description:

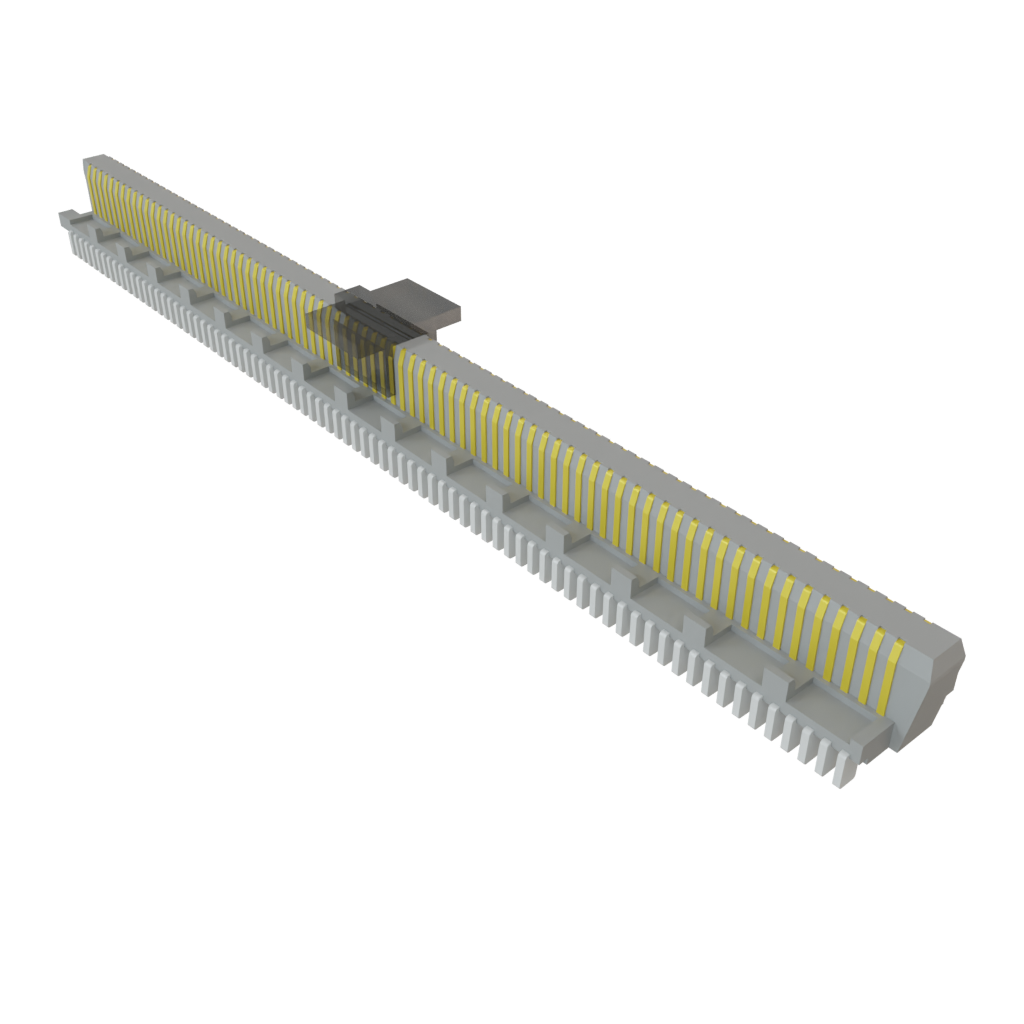

Board to Board & Mezzanine Connectors 0.50 mm Micro Blade & Beam Low-Profile Header

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec ST5-80-1.50-L-D-P-TR

In Stock: 2.086

Stock:: 2.086 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 6 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 825)

Cut Tape

MouseReel™ (+5,00 €)

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	6,49 €	6,49 €
	6,17 €	61,70 €
	5,86 €	146,50 €
	5,69 €	284,50 €
	5,27 €	527,00 €
	5,03 €	1.257,50 €
	5,01 €	2.505,00 €
Full Reel (Order in multiples of 825)
	4,45 €	3.671,25 €

† A MouseReel™ fee of 5,00 € will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	160 Position
Pitch:	0.5 mm (0.02 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	4.5 mm, 5 mm
Current Rating:	1.6 A
Voltage Rating:	200 VAC
Maximum Data Rate:	56 Gbps
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	ST5
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Application:	Power, Signal
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Data Rate:	56 Gbps
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	825
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Razor Beam LP
Unit Weight:	248 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Specification Sheets

Technical Resources

Test Report (PDF)

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Ultra Micro Interconnects

Samtec Ultra Micro Interconnects offer a stack height as low as 2.31mm and pitches of 0.4mm, 0.5mm, 0.635mm, and 0.8mm. One to four rows are available, and termination styles include solder, solder balls, and solder pin. Samtec Ultra Micro Interconnects are available in several mounting angles, including horizontal, right, straight, and vertical. The product lineup features connectors, headers, receptacles, sockets, and hermaphroditic connectors.

SS5/ST5 0.50mm Ultra-Fine-Pitch Connectors

Samtec SS5 / ST5 0.50mm Ultra-Fine-Pitch Connectors provide up to 56Gbps PAM4 performance and are designed for board-to-board connections where space is at a premium. The slim body connectors are manufactured on an ultra-fine 0.50mm pitch and feature up to 160 I/Os with mated stack heights as low as 4mm. These Razor Beam™ LP family sockets and headers are engineered to save space on the X, Y, and Z axes. Samtec SS5 / ST5 0.50mm Ultra-Fine-Pitch Connectors are available in a straight or vertical configuration, and the SS5 sockets are designed to mate with the ST5 headers and vice-versa. Both series operate in a -55°C to +125°C temperature range. Ideal applications include 5G networking, artificial intelligence (AI) and machine learning, military / aerospace, medical, automotive, and more.
