UMPT-06-01-L-RA-WT-P-TR

Name: Samtec UMPT-06-01-L-RA-WT-P-TR
Brand: Samtec
SKU: 200-UMPT0601LRAWTPTR
Price: 5.21 EUR
Availability: InStock

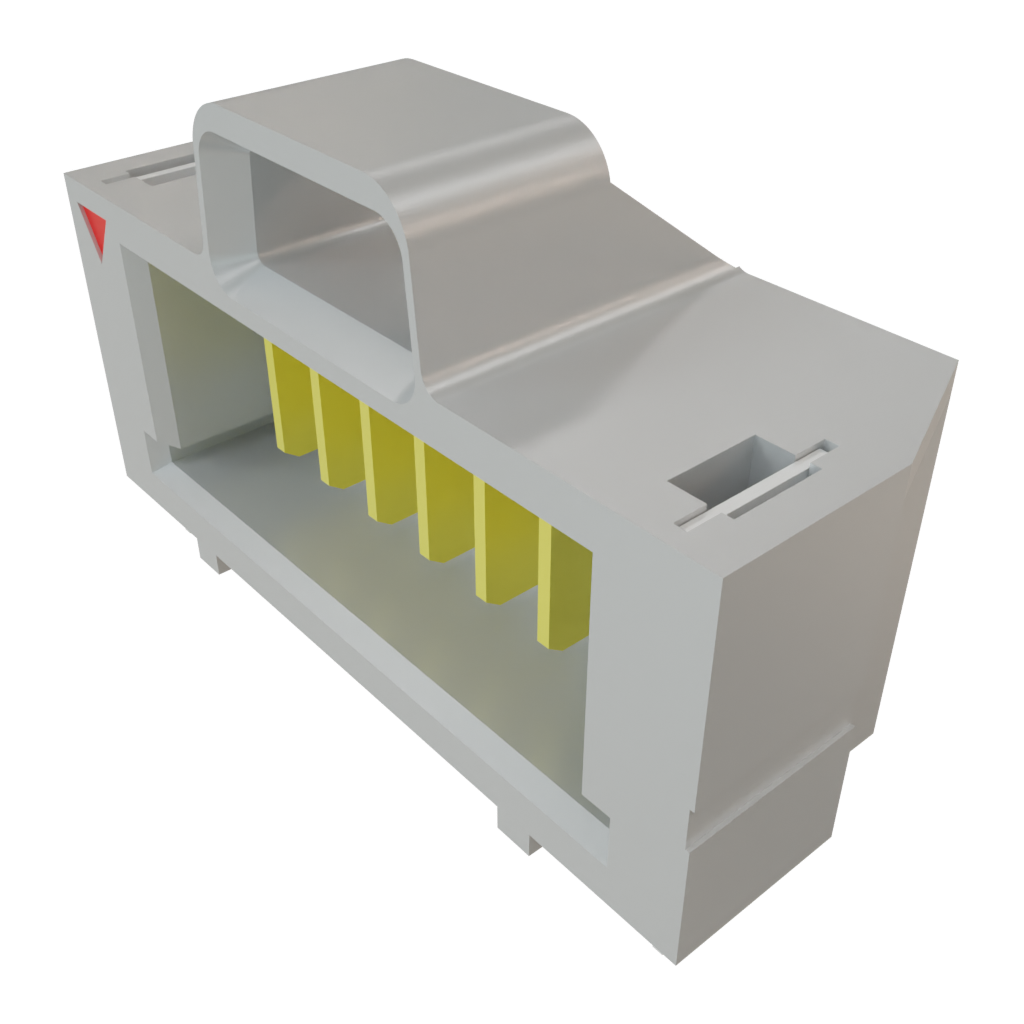

Images are for reference only
See Product Specifications

Mouser No:

200-UMPT0601LRAWTPTR

Mfr. No:

UMPT-06-01-L-RA-WT-P-TR

Mfr.:

Samtec

Description:

Power to the Board 2.00 mm mPOWER Ultra Micro Power Terminal

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec UMPT-06-01-L-RA-WT-P-TR

In Stock: 102

Stock:: 102

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 400
Factory Lead Time:: 10

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,21 €	5,21 €
	4,82 €	48,20 €
	4,56 €	114,00 €
	4,39 €	219,50 €
Full Reel (Order in multiples of 100)
	3,56 €	356,00 €
	3,47 €	1.735,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Power to the Board
RoHS:
Product Type:	Power to the Board
Contact Gender:	Pin (Male)
Current Rating:	18 A
Voltage Rating:	460 VAC, 650 VDC
Number of Positions:	6 Position
Mounting Style:	Through Hole
Termination Style:	Solder
Pitch:	2 mm
Series:	UMPT
Packaging:	Reel
Packaging:	Cut Tape
Tradename:	mPower
Brand:	Samtec
Contact Material:	Copper Alloy
Contact Plating:	Gold
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Housing Colour:	Black
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Mounting Angle:	Right Angle
Number of Rows:	1 Row
Product:	Ultra Micro Power Systems
Factory Pack Quantity:	100
Subcategory:	Power Connectors

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Product Catalogs

Samtec Micro Rugged Design Guide (PDF)

Specification Sheets

Technical Resources

Test Report (PDF)

Videos

mPower Micro High-Power Connectors

TARIC:: 8536693000
CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

mPower® Ultra Micro Power Connection System

Samtec mPower® Ultra Micro Power Connection System features micro 2mm-pitch 18A power blade interconnects designed for power only or for staging a combination power and signal / ground solution. This micro, high-power solution delivers design flexibility for power-only or power / signal applications. Thanks to the wide variety of stack heights, mPower can easily be added to new or existing architectures alongside one of Samtec's high-speed connector systems for a unique two-piece power and signal / ground solution. Samtec mPower Ultra Micro Power Connection System is a Severe Environment Test (SET) qualified product. SET is a Samtec initiative to test products beyond typical industry standards and specifications. These products undergo additional testing to ensure they are more than suitable for rugged / harsh environments such as military, space, automotive, industrial, and other extreme applications.

5G Solutions

Samtec 5G Solutions support the ultra-high frequencies and high data rates that emerging 5G technologies demand. As this 5G network quickly gains momentum, new systems, devices, and equipment are needed for technologies such as mmWave, Massive MIMO, beamforming, and full-duplex (FDX). Samtec 5G Solutions feature high-performance products for four applications: Test and Development Systems, Remote Radio and Active Antennas, Network Equipment, and Automotive and Transportation.

mPower™ 2mm UMPT/UMPS Ultra Micro Power Connectors

Samtec mPower™ 2mm Ultra Micro-Power Terminal (UMPT, UMPT-RA) and Ultra Micro-Power Socket (UMPS) Power Connectors are a high-power solution with design flexibility for power-only or power/signal applications. These Samtec power connectors offer variations, including 2 to 10 positions on a 2mm pitch and 5mm to 16mm, 18mm, and 20mm stacking heights. The UMPT/UMPS connectors are mateable to one another. These power connectors operate at up to 18A per blade and are RoHS compliant. The UMPT/UMPS are high-speed connector systems for a unique two-piece power and signal/ground solution.
