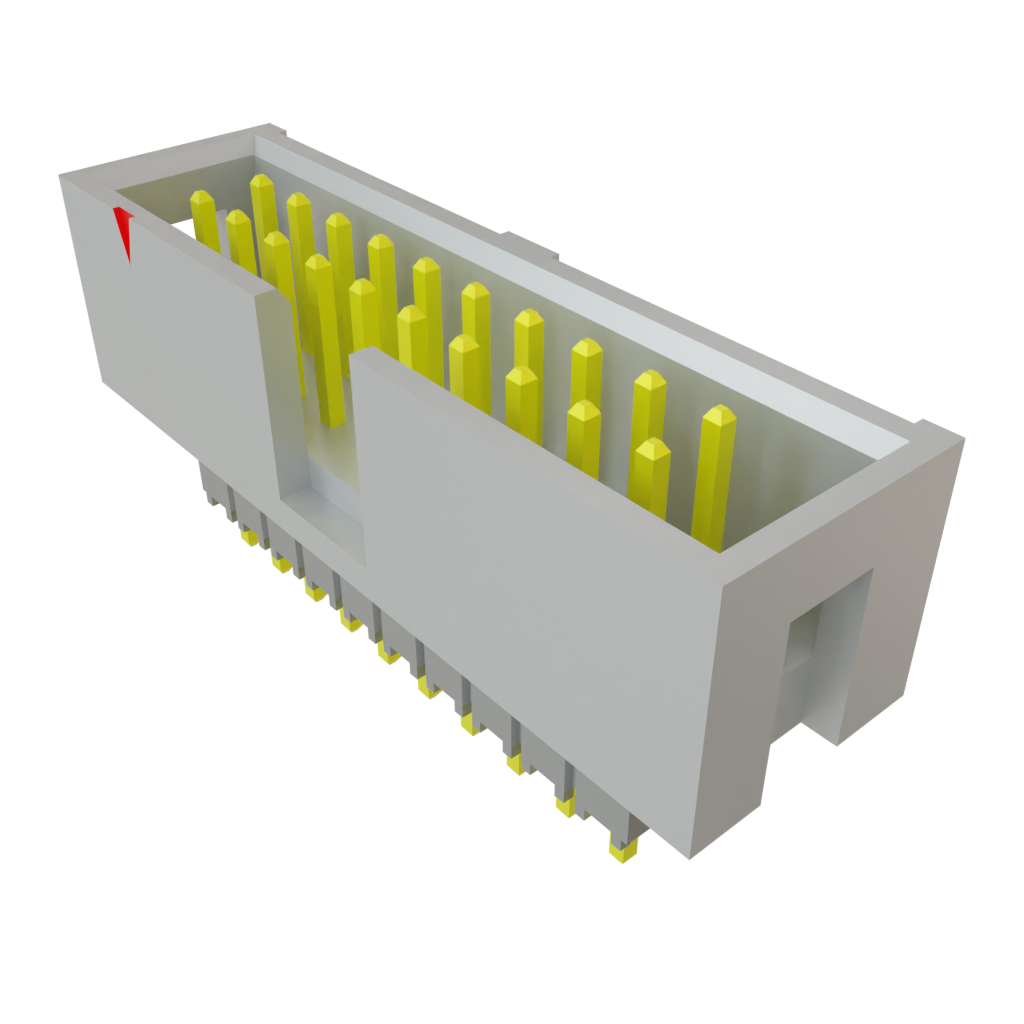

ZST-110-01-T-D-540

Name: Samtec ZST-110-01-T-D-540
Brand: Samtec
SKU: 200-ZST11001TD540
Price: 1.99 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-ZST11001TD540

Mfr. No:

ZST-110-01-T-D-540

Mfr.:

Samtec

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Stock:: An unexpected error occurred. Please try again later.

179 Can Dispatch in 5 Days

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Shrouded
Number of Positions:	20 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Series:	ZST
Tradename:	Flex Stack
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Bulk
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Polyester
Insulation Resistance:	5 GOhms
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings
Voltage Rating:	425 VAC, 600 VDC
