1473284-1

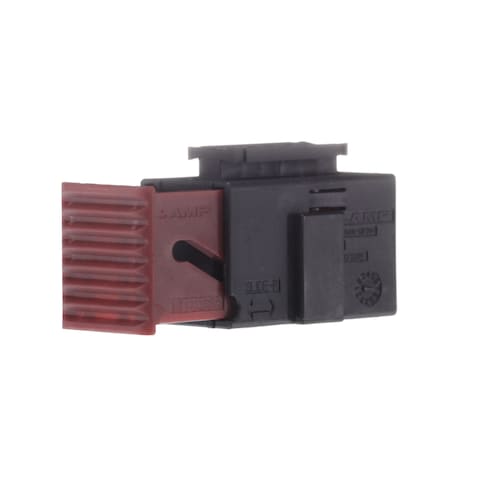

Name: TE Connectivity 1473284-1
Brand: TE Connectivity / AMP
SKU: 571-1473284-1
Price: 3.14 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1473284-1

Mfr. No:

1473284-1

Mfr.:

TE Connectivity / AMP

Description:

Automotive Connectors MICRO TIMER II 6POS PLUG ASY

Datasheet:

1473284-1 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 1473284-1

In Stock: 674

Stock:: 674 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 18 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,14 €	3,14 €
	2,63 €	26,30 €
	2,38 €	59,50 €
	2,17 €	217,00 €
	2,06 €	543,84 €
	2,01 €	1.061,28 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
REACH - SVHC:
Product:	Housings
Number of Positions:	6 Position
Pitch:	4.2 mm (0.165 in)
Gender:	Receptacle (Female)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Plating:	Tin
Wire Gauge Min:	20 AWG
Wire Gauge Max:	17 AWG
Color:	Black
Series:	Micro Timer II
Application:	Wire to Board/Device
Brand:	TE Connectivity / AMP
Contact Gender:	Without Socket Contacts
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	KR
Height:	25.4 mm
Housing Material:	Polyamide (PA)
Length:	28.5 mm
Locking Mechanism:	On the terminal
Maximum Operating Temperature:	+ 85 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Straight
Number of Rows:	1 Row
Product Type:	Automotive Connectors
Factory Pack Quantity:	132
Subcategory:	Automotive Connectors
Tradename:	Timer
Type:	Plug Housing
Voltage Rating:	14 VDC
Width:	40.5 mm
Wire Gauge Range:	17 AWG to 20 AWG
Unit Weight:	16 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1473284-1 Datasheet (PDF)

Images

PCN

RoHS Certificate (PDF)

TARIC:: 8547200090
CNHTS:: 8538900000
CAHTS:: 8538903900
USHTS:: 8538906000
JPHTS:: 853890000
MXHTS:: 8538900100
BRHTS:: 85389090
ECCN:: EAR99

Timer Interconnection System

TE Connectivity's (TE) Timer Interconnect System features contacts used extensively in the automotive industry. Each contact of this TE series consists of a flat receptacle, which mates with a flat tab. The receptacle has two respective four contact springs, which are independent of each other. Two-piece contacts with a steel top spring are predominantly. This two-piece contact design means that the electrical and mechanical properties are separated. One end of the contact body is either crimped to wire or soldered to a printed circuit board. The other end of the contact body mates with the matching tab.
